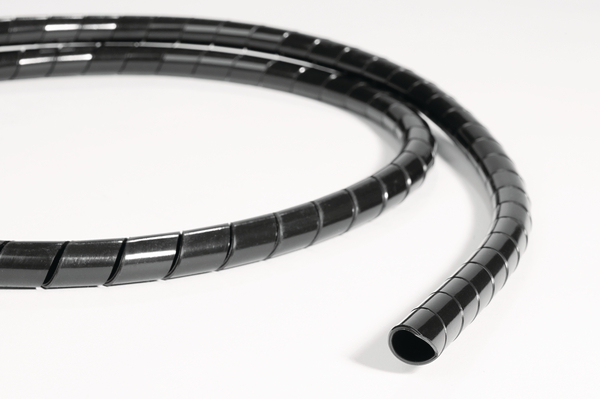

Spiral binding polyamide 6 V0 black
Art.-No. 161-44201 | SBPAV09-PA6V0-BK |  Details

SBPA - Black fire retardant PA Spiral Wrap.

    • Organises and protects cables and hoses
    • Self-extinguishing according to UL94 V0
    • Very good protection against abrasion
    • Suitable for retro-fitting
    • Cables branch out at any point
    • Wide range of diameters
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Due to its excellent flame protection properties, SBPAV0 spiral binding is particularly suitable for the rail and aviation industries as well as public buildings.
    Colour Black (BK)
    Key product features abrasion resistant, wrappable
    Material Polyamide 6 V0 (PA6V0)
    PART DESCRIPTION SBPAV09-PA6V0-BK
    Pack Content 100m
    Package Content packed in bag
    Product Family SBPAV0
    Product Group PA Flame-retardant Spiral Binding
    Type SBPAV09
    Variant Spiral Binding
    Bundle ⌀ min. 10mm
    Bundle Diameter max (metric) 100mm
    Diameter (D) 9.0mm
    Length (L) 200mm
    Nominal ⌀ 0.38"
    Nominal ⌀ 9mm
    Pitch (P) 12.5mm
    Wall (WT) 1.0mm
    EN 45545-2 Results R22 HL2, R23 HL3
    Flammability UL 94 V0
    Halogen-free Yes
    Hazardous Goods No
    Intermittent Operating Temperature +130°C
    Operating Temperature -40 °C to +95 °C, intermittent +130 °C
    ROHS compliant Yes
    Specifications
    Specifications EN 45545-2
    GTIN-13 / EAN 5022660669545
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 4.8kg
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
