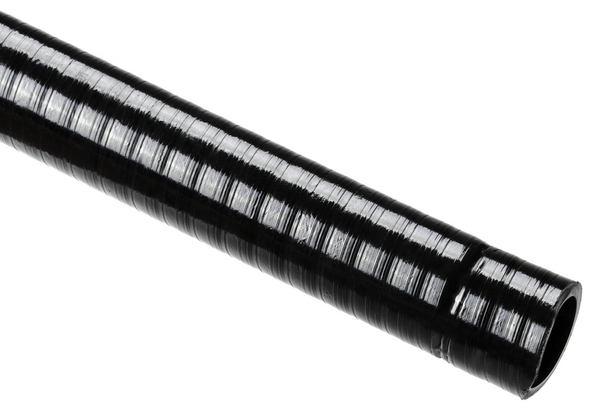

LPC0500-PVC-BK
Art.-No. 166-90248 | LPC0500-PVC-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION LPC0500-PVC-BK
    Pack Content 30.5m
    Package Content packed in reel
    Type LPC0500
    Bending Radius min. (BR) 2.76"
    Bending Radius min. (R) 70mm
    Inner Diameter D (Imperial) 0.63"
    Inside Ø (ID) 16mm
    Length (L) 30.5m
    Nominal ∅ 0.5"
    Nominal ∅ 20mm
    Outside Ø (OD) 21.1mm
    Outside ∅ (OD) 0.83"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -5 °C to +70 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    GTIN-13 / EAN 4031026485058
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
