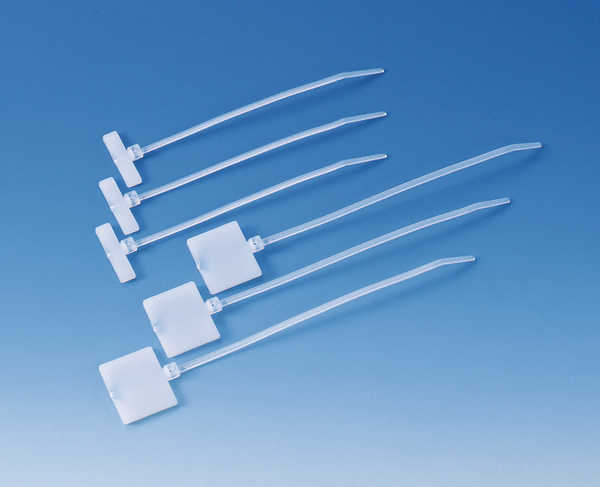

Identification cable tie, 140x24.6mm, ∅3.00-25.00mm, natural, 100pcs.
Art.-No. 111-00598
| IT18I-E/TFE-NA
|
Details
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
Request your individual offer now
Request quote
More products in this product group:
| Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
| Colour | Natural (NA) |
| Fixation Method | None |
| Identification Plate Position | stands of bundle |
| Material | Ethylene Tetrafluoroethylene (E/TFE) |
| PART DESCRIPTION | IT18I-E/TFE-NA |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAGN1L-9372 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | IT18I |
| Variant | Inside Serrated |
| With label space | Yes |
| Bundle Diameter max (metric) | 25.00mm |
| Bundle ∅ min. | 3.00mm |
| Cable Tie Head Height (metric) | 3.50mm |
| Cable Tie Head Length (metric) | 5.00mm |
| Cable Tie Head Width (metric) | 4.80mm |

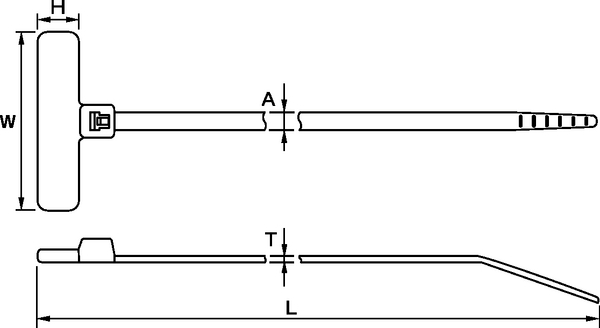

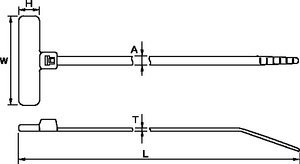

| H printable | 24.6mm |
| Height (H) | 20.00mm |
| Length (L) | 140mm |
| Min.Tensile Strength | 80N |
| Print Method | manual marking |
| Thickness (T) | 1.2mm |
| Width (W) | 24.6mm |
| Width (W2) | 2.50mm |
| Width of printable area | 20.0mm |
Download
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Operating Temperature | -80 °C to +170 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL Recognized (US) | Yes |
| UL-File Number | E64962 |
