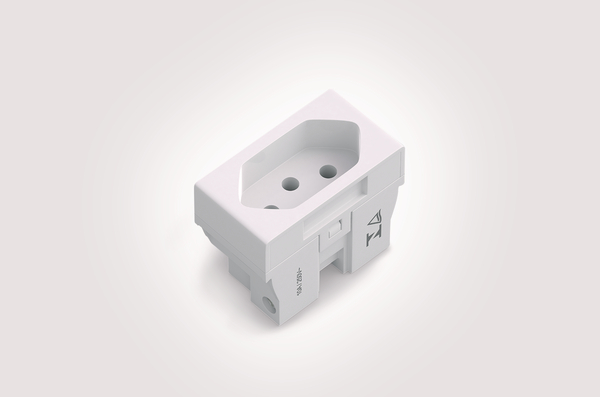

Accessory, Raceway, white, 1pc. (14136-20ABR)
Art.-No. 250-00233 | 14136-20ABR-ABS-WH |  Details

Brazilian socket white.

    • Ideal for power or data installation;
    • Indicated to equip accessories of all wiring ducts sizes;
    • Easy fitting with HellermannTyton faceplates;
    • The power outlets meets the Brazilian standard of plugs and outlets.
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Standard power outlet 14136 20ABR - white - 20A 250VCA - 24,5x45mm
    Colour White (WH)
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION 14136-20ABR-ABS-WH
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Standard white power outlet
    Product Group Power Outlets
    Type 14136-20ABR

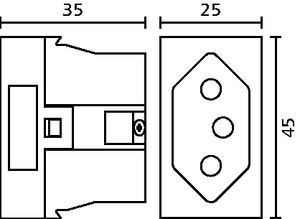

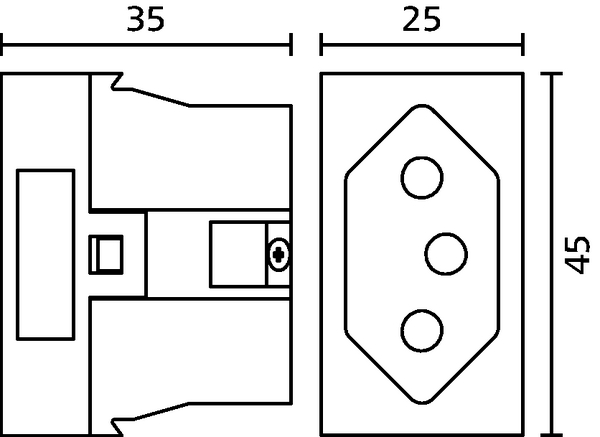

    Length (L) 45.0mm
    Width (W) 25.0mm
    Flammability UL 94 V0
    ROHS compliant No
    GTIN-13 / EAN 7890176078780
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
