Wiring duct raceway modular vertical system
Art.-No. 250-00172 | FTC4/FP2-PVC/ABS/AL-WH Details

  • Vertical modular system;
  • Ideal for commercial,residential, laboratory and other installations;
  • Flexible in future modifications;
  • Central bracket made in aluminum, providing independence of the circuits between both faces;
  • Base finishing with cutout for flooring wiring ducts;
  • Fixing possibility in the ceiling;
  • Available in a wide range of configurations on request.
Show more

Request your individual offer now

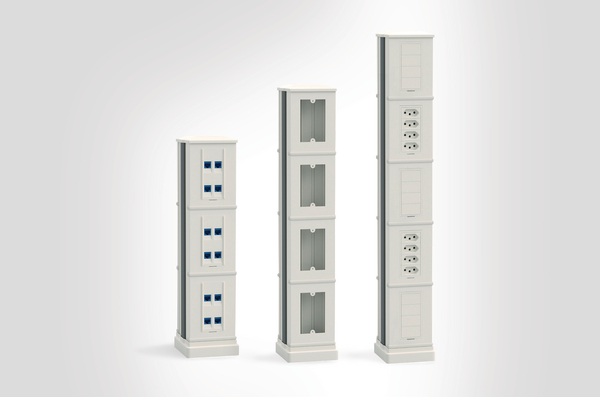

Application The FTC4/FP2 torrecanal, indicated for the vertical installations of energy or data cabling, is composed of 8 faceplates module to fit 8 faceplates, 4 in each side. Can be configurated with power or data modules, according to the need of the installation.
Colour White (WH)
Material Polyvinylchloride (PVC), Acrylonitrile Butadiene Styrene (ABS), Aluminium (AL)
PART DESCRIPTION FTC4/FP2-PVC/ABS/AL-WH
Pack Content 1pc.
Package Content packed in pack
Product Family Torrecanal in white PVC and aluminum
Product Group Wiring duct raceway modular vertical system
Type FTC4/FP2
Height (H) 600.0mm
Length (L) 122.0mm
Width (W) 116.0mm
Flammability UL 94 V0
ROHS compliant No
GTIN-13 / EAN 7890176045928
UNSPSC Key 39131712
