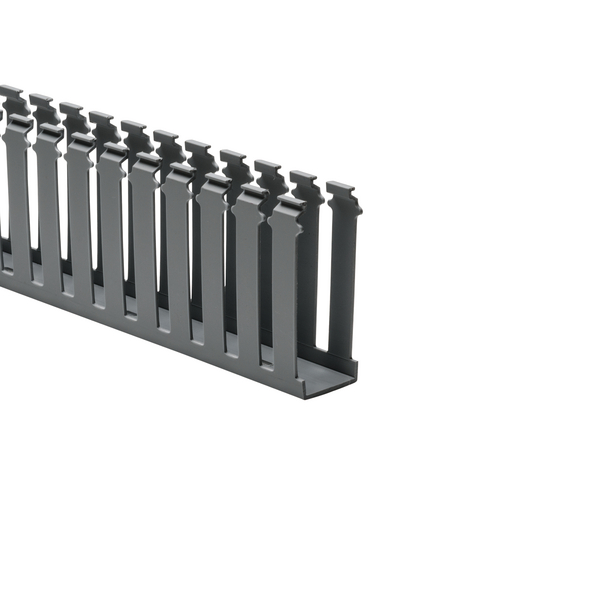

SL1.5X4-PVC-GY
Art.-No. 181-15403 | SL1.5X4-PVC-GY |  Details

Strong fingers prevent unwanted breaking.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Fixation Method Non-Adhesive
    Material Polyvinylchloride - rigid extrusion grade (PVC)
    PART DESCRIPTION SL1.5X4-PVC-GY
    Pack Content 9.14m
    Package Content packed in box
    Type SL1.5X4
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 103.4mm
    Length (L) 1.83m
    Width (W) 38.1mm
    Width (W2) 1.5"
    Width (W2) 38.1mm
    Width (W3) 0.4"
    Width (W3) 10.2mm
    Width (W4) 25.4mm
    Width (W4) 1.0"
    Width (W5) 3.6"
    Width (W5) 91.4mm
    CE Certification No
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    GTIN-13 / EAN 4031026414713
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
