DIN Rail
Art.-No. 181-00705 | T35-AL-ML | Details

Made of cold-rolled steel
Mounting rails are notable for their highly accurate fit
Conform to all relevant DIN standards
Comprehensive programme makes every type of fixing possible
Mounting rails are avaiable in 2 different coatings: galvanic zinc plating (white chromated) and hot-dip galvanized (sendzimir galvanized)
The white chromated mounting rails offer superior corrosion protection
Consists of anchor and top hat rails with and without punched holes

Request your individual offer now

Request quote

More products in this product group:

Application	The DIN Rail anchor rails are used for building control panels. Routing cables and wires (for instance, control cables, power supplies) in a control panel is also a very common area of application. The top hat rails are used for mounting switching devices, controls, relays, etc. in control panels.
Colour	Metal (ML)

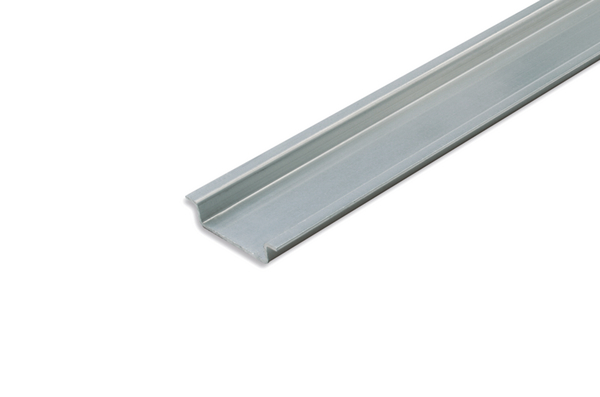

Description	DIN RAIL ALUMINIUM 35MM X 8MM X 1.5MM LENGTH 2M
Material	Aluminium (AL)
PART DESCRIPTION	T35-AL-ML
Pack Content	2m
Package Content packed in	EA
Product Family	DIN Rail Mounting
Product Group	DIN Rail
Type	T35
Variant	DIN rail acc. EN60715
