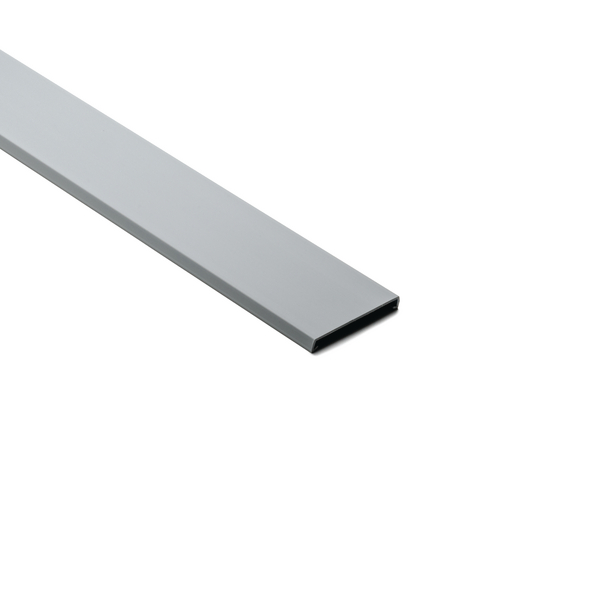

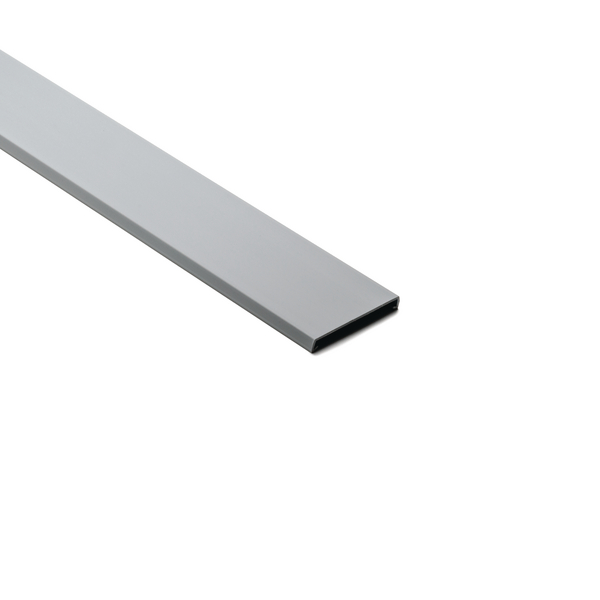

Accessory, Duct Fittings, grey, 36.58m (TC2.5)
Art.-No. 181-00260 | TC2.5-PVC-GY |  Details

Covers include a nonslip liner that ensures covers resist vibration yet easily snap on.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Current leak stable Yes/No Yes
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION TC2.5-PVC-GY
    Pack Content 36.58m
    Package Content packed in carton
    Product Group Wiring Duct Covers
    Type TC2.5
    Height (H) 7.82mm
    Length (L) 1.83m
    Width (W) 63.5mm
    CE Certification No
    CSA Certified Yes
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    GTIN-13 / EAN 4031026669199
    UNSPSC Key 39131713

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
