19/12/2024

Aluminium frame mount for Bosch Rexroth/SUS, W=10.0mm, T=6.0mm, black, 500pcs.
Art.-No. 151-02858 | ACFM2W10PT6-PA66/6HIRHS-BK |  Details

The ACFM2W10PT6 for Bosch Rexroth 45.0 mm frame.

    • Easy to assemble (quarter turn) without the need for a tool
    • Tight fit after assembly
    • Fixing with 24er plug nut possible
    • Cable fastening longitudinally and transversely to the profile possible
    • Centering of the bundled cables due to the deepened shape of the surface
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The ACFM2W10PT6 is specially designed for the Bosch Rexroth profile with a T-slot width of 10 mm and external dimensions of 45 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.
    Colour Black (BK)
    Fixation Method Profile rail
    For Ties T50 T80 T120 X80 X120 Q50 Q120
    Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
    PART DESCRIPTION ACFM2W10PT6-PA66/6HIRHS-BK
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family For Bosch Rexroth Strut profiles slot 10
    Product Group Fixing elements for aluminium frames
    Type ACFM2W10PT6

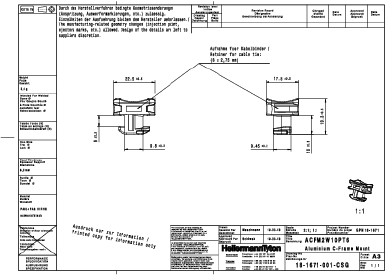

    Height (H) 9.3mm
    Height (H2) 19.3mm
    Length (L) 17.5mm
    Max. Tie Width (G) 8.0mm
    Panel Thickness max. 6.0mm
    Width (W) 22.5mm
    for Panel Thickness min - max 6 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026620299
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.466815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 9.40089kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 246.648kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
