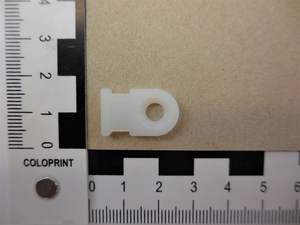

Cable tie mount for screw fixation, Wmax=5.0mm, ∅5.0 mm, M4 Screw, white, 100pcs.
Art.-No. 151-28219 | MB2-PA66-WH |  Details

Simple to install with a screw or rivet.

    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Single hole fixing with two-way entry for cable tie
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application These cable tie mounts are very small in their overall size. They are designed for simple yet robust installation particulary in areas with high vibrations and/or limited space. They are a common fixing method for telecoms equipment, switchgear and control cabinets.
    Colour White (WH)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION MB2-PA66-WH
    Pack Content 100pcs.
    Package Content packed in pcs.
    Product Family MB with flat design
    Product Group Screw Fixing Mounts
    Type MB2
    Height (H) 3.3mm
    Height (H2) 1.7mm
    Length (L) 20.5mm
    Max. Tie Width (G) 5.0mm
    Width (W) 12.5mm
    for Hole ∅ (FH) 5.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660117008
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.17m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00051m³
    Packaging 1 - Weight (kg) 0.062001kg
    Packaging 1 - Width (m) 0.15m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 20000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 13.2022kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.258m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 400000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.208m³
    Packaging 4 - Weight (kg) 285.04kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
