19/12/2024

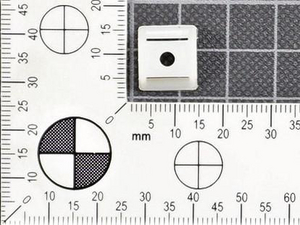

Cable tie mount for screw fixation, Wmax=8.0mm, ∅3.1 mm, natural, 1000pcs.
Art.-No. 151-25219 | NY3256-PA66-NA |  Details

Cable Tie Mounts NY Series.

    • Curved design for additional cable support

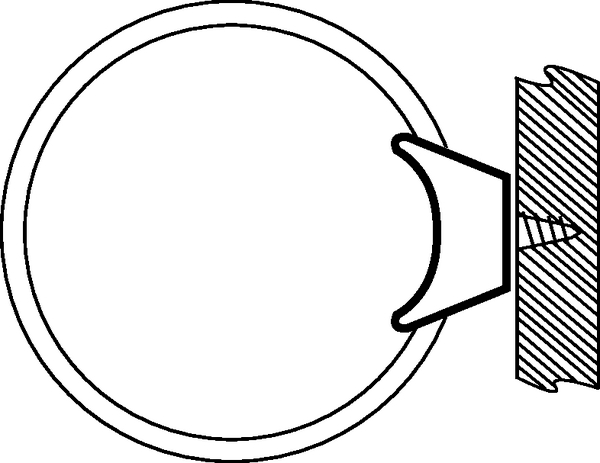

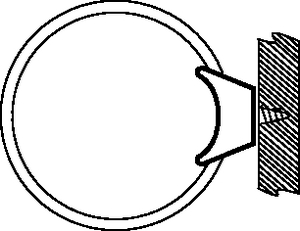

    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13 mm width.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION NY3256-PA66-NA
    Pack Content 1000pcs.
    Package Content packed in pcs.
    Product Family NY with curved design
    Product Group Screw Fixing Mounts
    Type NY3256

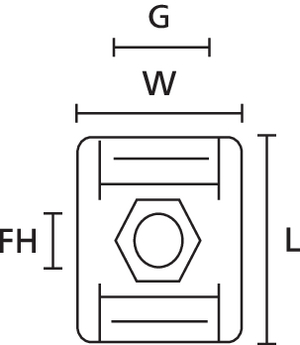

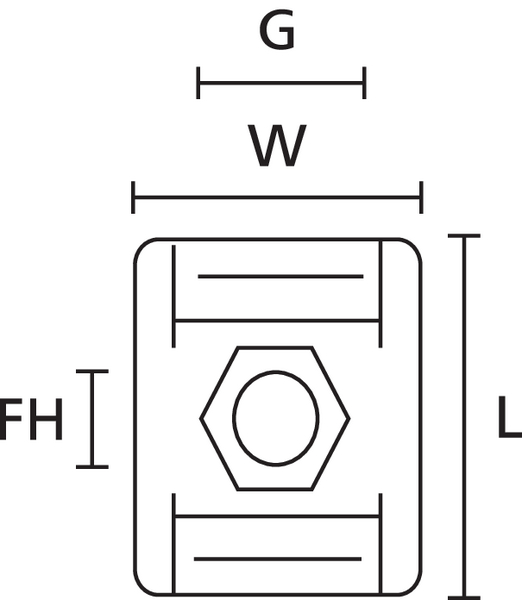

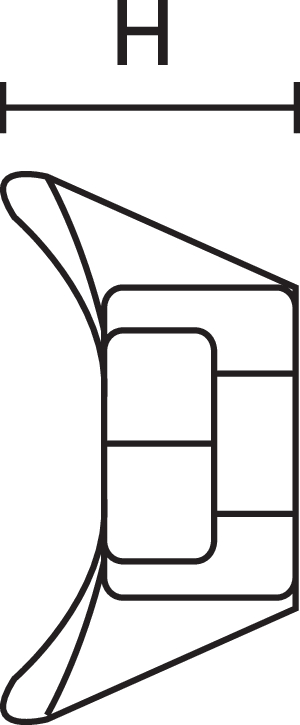

    Height (H) 7.8mm
    Length (L) 13.5mm
    Max. Tie Width (G) 8.0mm
    Width (W) 12.0mm
    for Hole ∅ (FH) 3.1 mm
    ELV compliant (Article 4 - 2) YES
    EN 45545-2 Results R22 HL2, R23 HL2
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5975-12-161-1864
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications EN 45545-2
    GTIN-13 / EAN 4031026122410

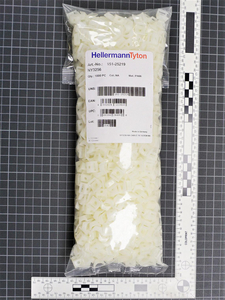

    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.003m³
    Packaging 1 - Weight (kg) 0.513kg
    Packaging 1 - Width (m) 0.13m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 5.4677kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.171m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 480000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.124m³
    Packaging 4 - Weight (kg) 283.56kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
