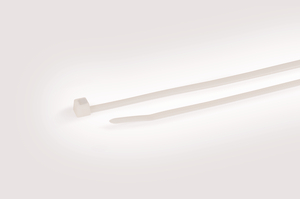

Cable tie inside serrated, 390.0x4.6mm, ∅1.5-110mm, natural, 100pcs.
Art.-No. 111-05655 | T50L-PA66HS-NA |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Heat stabilized cable ties (PA66HS) for temperatures up to +105 °C
    • Available in a wide range of sizes to cover almost every application
    • Inside serration provides a strong hold onto bundles
    • Manual and/or pneumatic tools available for greater process reliability
    • Commonly offered in natural and black, other colors available on request
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    e-Learning
    Application These inside serrated cable ties are made from heat stabilized Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation.
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50L-PA66HS-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family T-Series in PA66HS coloured
    Product Group Cable Ties for temperatures up to + 105°C (heat stabilised)
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50L
    Variant Inside Serrated
    Bundle Diameter max (metric) 110mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 7.2mm
    Cable Tie Head Width (metric) 8.1mm
    Length (L) 390.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.32"
    Thickness (T) 1.4mm
    Width (W) 4.6mm
    Designation as per VG-Norm VG 95387 T04 A 205 L
    Flammability UL 94 V2
    Halogen-free Yes
    Nato number 5975-12-334-9323
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 62275, csa-C22.2 no. 62275, VG 95387 Part 4
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E85319
    UNSPSC Key 39121703
