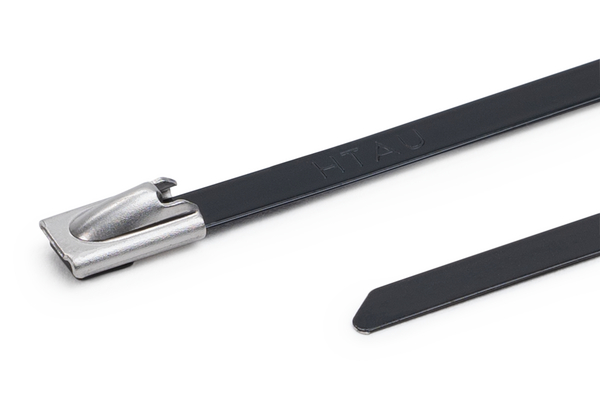

Stainless steel cable tie, 200x7.9mm, ∅15-61.9mm, black, 100pcs.
Art.-No. 924-00009 | SSCCTB200X7.9-SS316-BK |  Details

Stainless steel coated cable tie, SSCCTB-series.

    • Cable ties made from type 316 stainless steel
    • Patented non-releasable locking feature
    • Coated cable tie with smooth edges
    • Comfortable handling and installation
    • Eliminates contact corrosion between dissimilar materials during application
    • Coated with polyester for insulation and outdoor applications
    • Non-flammable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.
    Colour Black (BK)
    Description STAINLESS STEEL COATED C/TIE 316 200MM X 7.9MM BK
    Material Stainless Steel (SS316)
    PART DESCRIPTION SSCCTB200X7.9-SS316-BK
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Stainless Steel 316
    Product Group Cable Ties with Ball-Lock and Coating
    Type SSCCTB200X7.9
    Bundle Diameter max (metric) 61.9mm
    Bundle ∅ min. 15mm
    Length (L) 200mm
    Min.Tensile Strength 1600N
    Thickness (T) 38mm
    Width (W) 7.9mm
    Flammability non-burning (except coating)
    Operating Temperature -80 °C to +538 °C
    Specifications
    Specifications 2014/35/EU, cULus, DNV, TÜV, UL 62275, VDE
    UL Type 2
