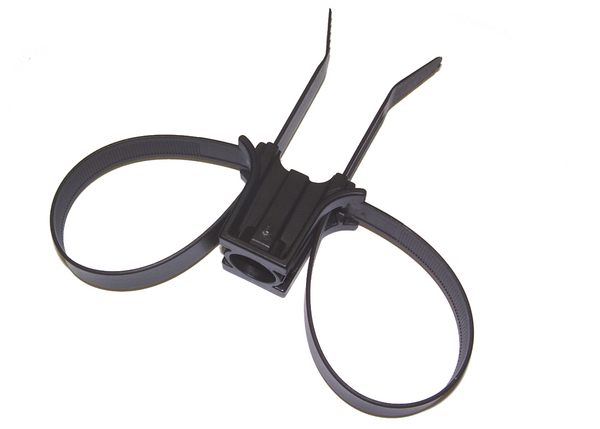

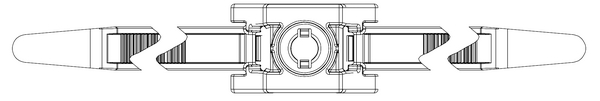

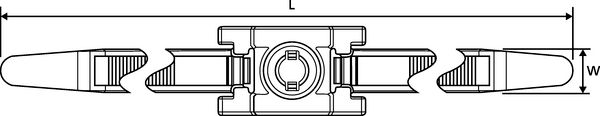

Fixing tie for stud, ∅9.5-58.4mm, black, 250pcs.
Art.-No. 117-00012
| SDCTR312-PA66HIRHSUV-BK
|
Details
- Wide strap minimizes pinching of soft hoses and convoluted tubing.
- Clamping rails increase circumferential grip on varying bundle diameters.

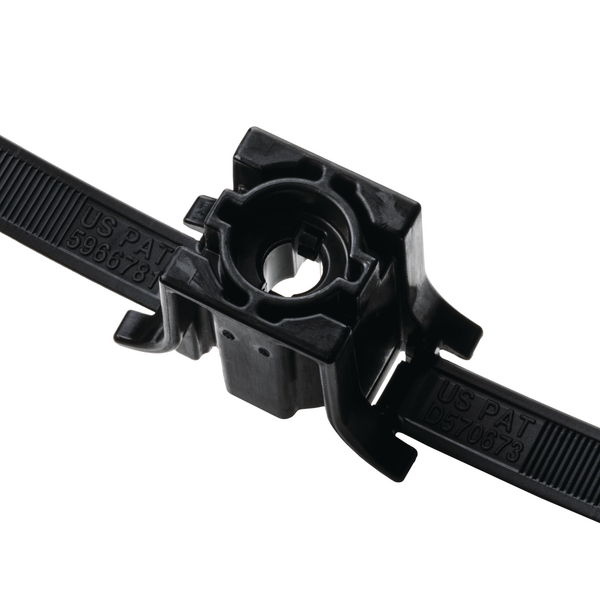

- Locking stud mount pawls allow for easy hand insertion.
- Nut or weld nesting counterbore provides flush mounting at the base.
Request your individual offer now
Request quote
More products in this product group:

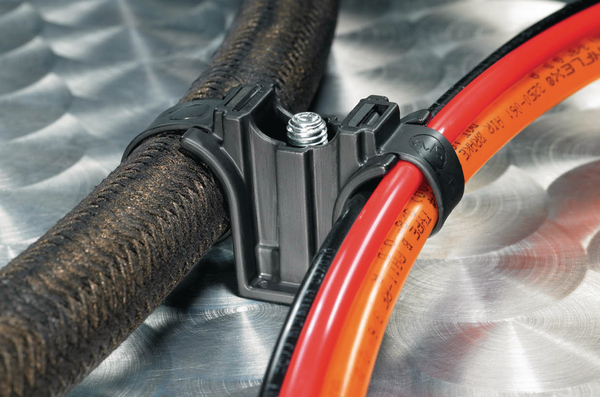

| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Colour | Black (BK) |

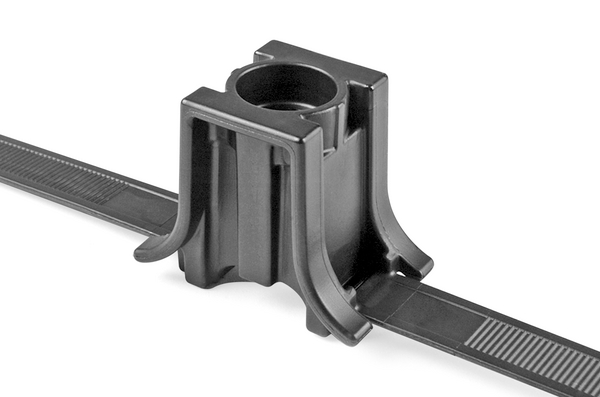

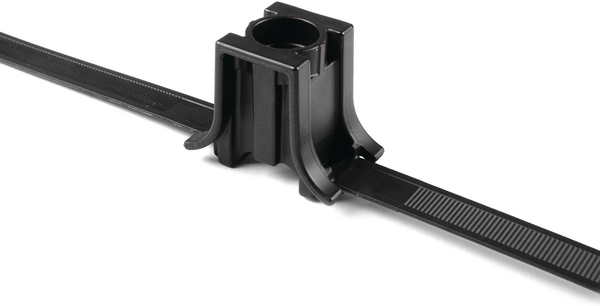

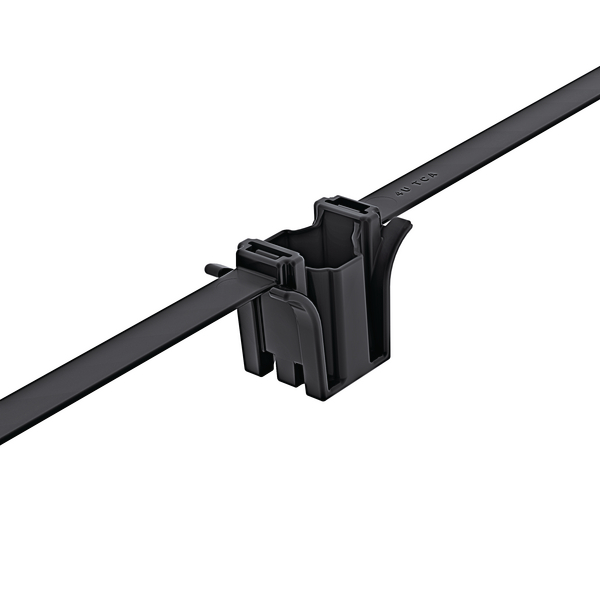

| Description | Stand Off Dual Clamp Ties offer the same features as the standard dual clamp tie, with a standoff mount that secures the bundle away from the side of the frame rail. This protects the bundles from bolts and other protrusions. |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SDCTR312-PA66HIRHSUV-BK |
| Pack Content | 250pcs. |
| Package Content packed in | carton |
| Product Family | SDCTR312 for 8 mm studs |
| Product Group | 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications, for parallel routing |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | SDCTR312 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026510668 |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 4.750001kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 250 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 5.62kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.27m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.219m³ |
| Packaging 4 - Weight (kg) | 88.08kg |
| Packaging 4 - Width (m) | 0.8m |
