Cable clip for edge
Art.-No. 151-01863 | HCEC3.0SP-C-PA66HIRHS-BK |  Details

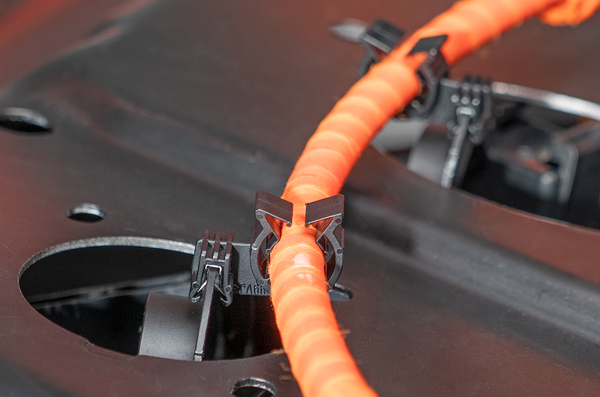

EdgeClip cable and tube clips are suitable for the low-vibration routing of cables and tubes with larger bundle diameters.

    • Clips to be pushed onto an edge
    • Low-vibration routing of bigger bundle diameters
    • To be closed single handed, a snap can be felt
    • Bundels can be released at any time
    • Covers are releasable for maintenance or post-installations
    • EC27 and HCEC3.0SP-C: fixing element enables use of smaller bundle diameters
    • EC41: for parallel guidance of two bundles
    • HCEC3.0TPS: specially rounded surface to minimise risk of injury
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote

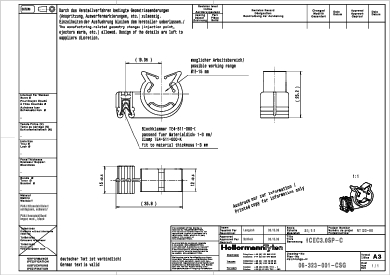

    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION HCEC3.0SP-C-PA66HIRHS-BK
    Pack Content 1000pcs.
    Package Content packed in bag
    Product Group Fixing Elements for Tubes and Harnesses, for Edges
    Type HCEC3.0SP-C
    Attach to Ø 12.0 - 15.0 mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026576411
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.54m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04104m³
    Packaging 1 - Weight (kg) 3.683597kg
    Packaging 1 - Width (m) 0.475m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 7.861194kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 209.688kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
