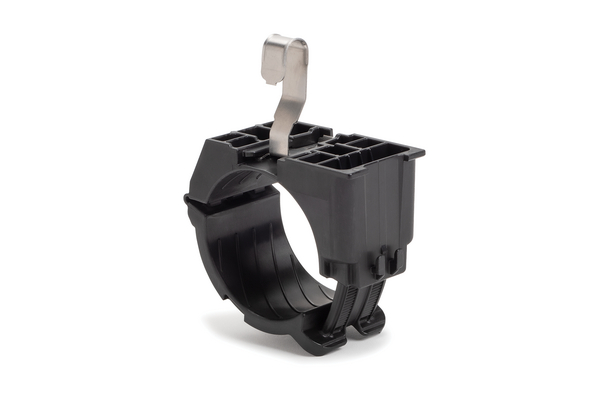

Cable clip with pipe/tube holder, Dmin=36.1mm, Dmax=50.8mm
Art.-No. 156-04194 | IRCDNEXTT-PA66HIRHSUV/SS304-BK |  Details

Designed specially for NexTracker, stainless steel mounting hanger can tolerate high torque.

    • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
    • Designed for applications where space is limited or when a staggered mounting option is not ideal
    • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
    • The variants for bolt attachment enable time-saving installation with a reliable hold
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Colour Black (BK)
    Fixation Method Mounting Hanger
    Key product features for multiple routing, lockable, releasable, stackable, vibration absorbing
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Stainless Steel (SS304)
    PART DESCRIPTION IRCDNEXTT-PA66HIRHSUV/SS304-BK
    Pack Content 175pcs.
    Package Content packed in box
    Product Family screwable, Inline Ratchet Clamps
    Product Group Heavy duty cable clamps
    Releasable Closure (Yes/No) Yes
    Type IRCDNEXTT
    Attach to Diameter 0.34 "
    Attach to Ø 8.6
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ min. 36.1mm
    Height (H) 72.2mm

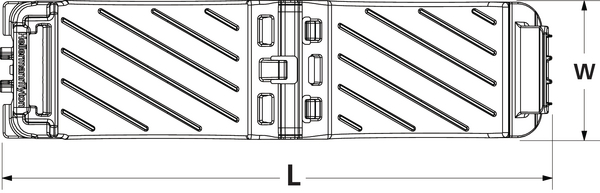

    Length (L) 140.9mm
    Min.Tensile Strength 110N
    Strap Width max. (G) 0.52"
    Width (W) 34.8mm
    Width (W2) 0.28"
    Width (W2) 6.8mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026688367
    Packaging 1 - Qty 175
    Packaging 1 - Type pack
    UNSPSC Key 39121702
