Crimp Tools
Art.-No. 924-00340 | ALDIE240-300-MET-ML |

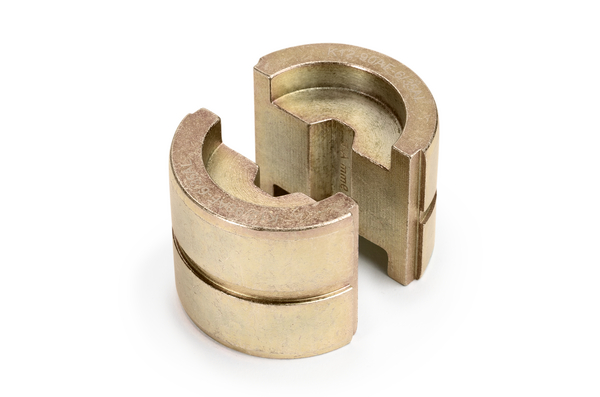

Aluminium die, ALDIE series.

Available in sizes ranging from 6mm² to 300mm²
C-type design
Dies are sold separately
Cross-flat size markings are embossed on the lug and link after crimping
Die radius: 60°

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Base Data
Product Dimensions

Base Data

Application	The hexagonal head crimp dies are designed for use with the 12 tonne hydraulic crimper (HYCP400). These dies are designed to accommodate a range of aluminum lugs and sleeves, with cross-flat dimensions that adhere to Australian and New Zealand standards. The dies are inserted into the crimper by sliding them into the designated slots on the head and ram.
Colour	Metal (ML)
Description	Aluminium Die 240-300mm²
Material	Metal (MET)
PART DESCRIPTION	ALDIE240-300-MET-ML
Pack Content	1pc.
Package Content packed in	box
Product Family	Hydraulic Die for Aluminium Lugs
Product Group	Crimp Tools
Type	ALDIE240-300

Product Dimensions

A/F Thread (A/F2)	28.4mm
Conductor Size Range mm²	240-300mm²
Depth (D)	14.2mm
Width (W)	18mm
Width (W2)	32.79mm

Specifications

Halogen-free	No
ROHS compliant	No

Logistics and Packaging

GTIN-13 / EAN

9349519011024
