Heat Shrinkable Tubing up to 4:1 - 1.2 m lengths
Art.-No. 924-00258 | MA47-95/30-PO-X-BK | Details

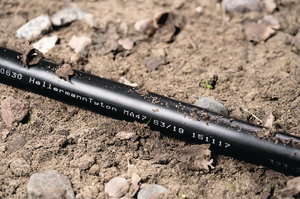

MA47 for above and below ground.

Medium walled tubing with robust insulation characteristics
Shrink tubing for above and underground cable applications
Protects cable joints and terminations in low voltage applications
Coated inside with thermoplastic adhesive
Protects against humidity and other environmental impacts after shrinking
UV-resistant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Heat Shrinkable Tubing up to 4:1 - 1.2 m lengths >

Base Data

Application	Insulation and protection of low voltage cable jonts and terminations above and below ground.
Colour	Black (BK)
Description	H/SHRINK 4:1 MED WALL GLUE LINED 95-30MM X 1.2M BK
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	MA47-95/30-PO-X-BK
Pack Content	1pc.
Package Content packed in	pcs.
Product Family	MA47 - medium wall adhesive lined
Product Group	Heat Shrinkable Tubing up to 4:1 - 1.2 m lengths
Shrink Ratio	up to 4:1
Type	MA47-95/30

Product Dimensions

Length (L)	1.2m
Longitudinal Change After Shrinkage	+/-10% max
Recov. ∅ d max.	30.0mm
Supplied ∅ D min.	95.0mm
Wall (WT)	3.0mm

Downloads

RoHS datasheet

Download

Specifications
More Information

Specifications

Dielectric Strength	18kV/mm
Flammability	ASTM D2671, Not Flame Retardant
Halogen-free	Yes
Insulation Class	A (VDE 0530)
Min. Shrink Temperature - °C	+120 °C
Operating Temperature	-55 °C to +110 °C
ROHS compliant	Yes
Softening Point Adhesive	+85 °C
