End Caps

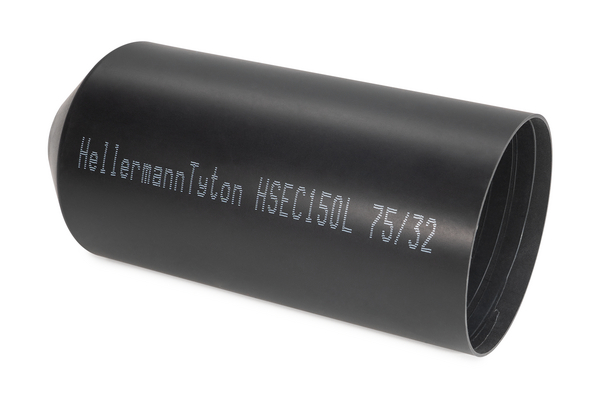

Art.-No. 924-00265 | HSEC150L-PO-X-BK | Details

The appropriate end cap for every cable diameter and cable types.

Seal cables during storage or transportation
Insulating cap for live LV cables (0.6/1 kV)
Adhesive lining for excellent environmental seal
High shrink ratio to minimise number of sizes needed

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Base Data

Application	End caps are suitable for use on aluminium or steel armoured cables.
Colour	Black (BK)
Description	HEATSHRINK ADHESIVE END CAP 75/36MM LENGTH 172MM
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	HSEC150L-PO-X-BK
Pack Content	1pc.
Package Content packed in	pcs.
Product Family	Helashrink HSEC, low voltage with adhesive coating
Product Group	End Caps
Shrink Ratio	up to 3:1
Type	HSEC150L

Product Dimensions

HW ± 20 %	4.0mm
Length (L)	172mm
P ± 10 %	172mm
∅H max. b	32mm
∅H min. a	75mm

Downloads

RoHS datasheet

Download

Specifications
More Information

Specifications

Dielectric Strength	12kV/mm
Flammability	ASTM D2671
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +110 °C
ROHS compliant	Yes
Specifications

More Information
