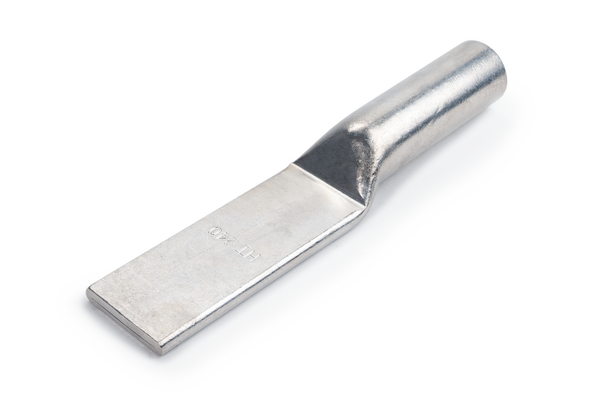

Copper Cable Lug
Art.-No. 924-00716
| CL35LPB-CU-SR
|
Details
- Designed for allowing more crimps
- Solder sealed for outdoor use
- All Long Barrel Long Palm Lugs do not have an inspection hole
- Large range of sizes available
- Allows for easy insertion of cable
- Tolerance ± 2%
- Copper 99.9% pure
- Oxygen content 30 p.p.m max
- Ductile rating 40%
- Final metal state fully annealed
- Electroplating material tin 99.9% pure
- Other metals lead + antimony
- Thickness 5-10 microns
- Total resistivity: 1.72 micro-ohm cm
- Heat cycle certification available on request
Request your individual offer now
Request quote
More products in this product group:
| Application | Copper cable lugs are used to terminate copper conductors. Long palm lugs are designed to accommodate two-bolt mounting for secure termination. The longer barrel provides an increased surface area for more effective crimping. The HellermannTyton range of Copper Lugs and Links complies with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995 and is manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. These lugs are highly conductive and capable of handling very high currents. A crimping tool is recommended for this application. |
| Colour | Silver-matt (MTSR) |
| Description | COPPER LUG LONG PALM LONG BARREL 35MM² BLANK |
| Material | Copper (CU) |
| PART DESCRIPTION | CL35LPB-CU-SR |
| Pack Content | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Long Barrel Long Palm Blank |
| Product Group | Copper Cable Lug |
| Type | CL35LPB |
