31/03/2025

Copper Cable Links
Art.-No. 924-00756 | CS10-CU-SR |

Copied

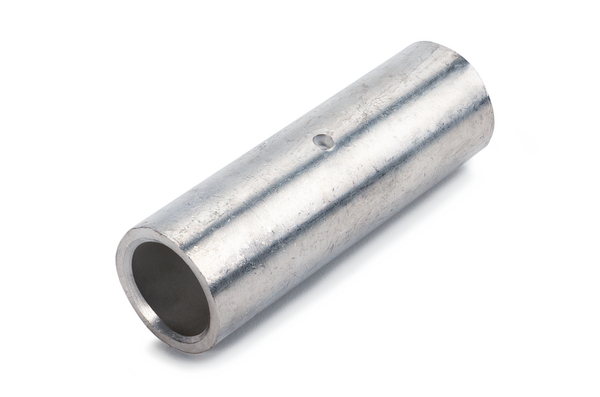

Copper Link, CS series.

    • Made from high conductivity annealed copper
    • A heat cycle certification is available on request
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Our Copper Links are designed for general-purpose copper conductor applications. They comply with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995. These links are manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. They are ideal for use in applications such as connecting electrical wiring in industrial machinery or electrical panels. A crimping tool is recommended for this application.
    Colour Silver-matt (MTSR)
    Description COPPER CRIMP LINK 10MM²
    Material Copper (CU)
    PART DESCRIPTION CS10-CU-SR
    Pack Content 100pcs.
    Package Content packed in box
    Product Family CS-Series
    Product Group Copper Cable Links
    Type CS10
    A/F Thread (A/F2) 5.7mm
    Conductor Size (mm²) 10
    Inside ⌀ (ID) 4.7mm

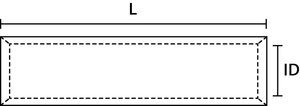

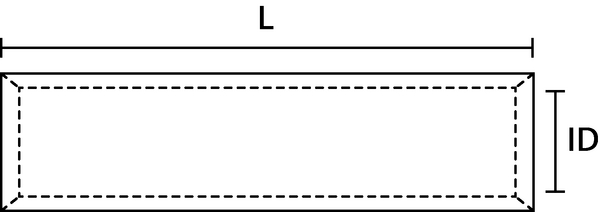

    Length (L) 22.2mm
    Main Cabel max 7 x 1.35mm²

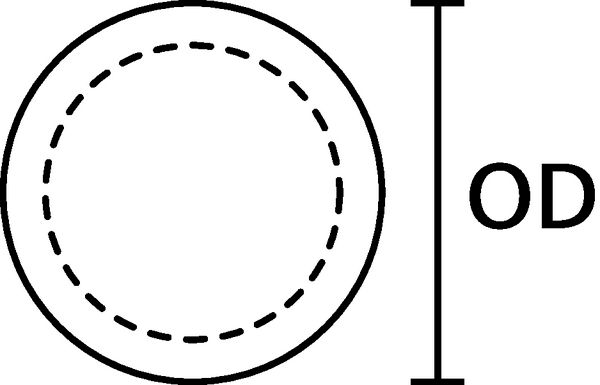

    Outside ⌀ (OD) 7.1mm
    Thickness (T) 2.4mm
    Operating Temperature -55 °C to +155 °C
    Specifications
    Specifications AS/NZS4325 Part 1
    GTIN-13 / EAN 9349519001452
