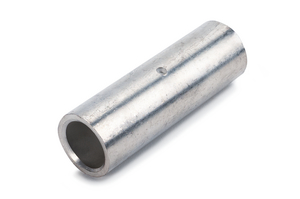

Copper Cable Links
Art.-No. 924-00761 | CS70-CU-SR |

Copied
Copper Link, CS series.

    • Made from high conductivity annealed copper
    • A heat cycle certification is available on request
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Our Copper Links are designed for general-purpose copper conductor applications. They comply with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995. These links are manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. They are ideal for use in applications such as connecting electrical wiring in industrial machinery or electrical panels. A crimping tool is recommended for this application.
    Colour Silver-matt (MTSR)
    Description COPPER CRIMP LINK 70MM²
    Material Copper (CU)
    PART DESCRIPTION CS70-CU-SR
    Pack Content 25pcs.
    Package Content packed in box
    Product Family CS-Series
    Product Group Copper Cable Links
    Type CS70
    A/F Thread (A/F2) 11.5mm
    Conductor Size (mm²) 70
    Inside ⌀ (ID) 11.3mm
    Length (L) 50.8mm
    Main Cabel max 19 x 2.14mm²
    Outside ⌀ (OD) 14.6mm
    Thickness (T) 3.3mm
    Operating Temperature -55 °C to +155 °C
    Specifications
    Specifications AS/NZS4325 Part 1
    GTIN-13 / EAN 9349519001506
