Lip Blade Terminals
Art.-No. 924-00557 | 1HB5-CU/PVC-RD |

Copied

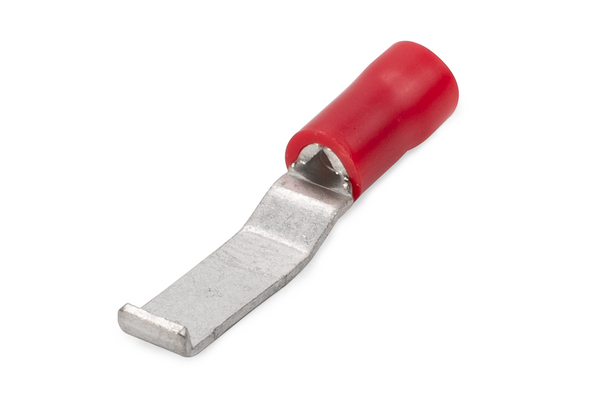

Lip blade terminal, 1HB series.

    • Recomennded for basic applications
    • Colour coded for easier identitfication
    • Additional copper sleeve for premium vibration
    • Copper terminal offers excellent elcetrical conductivity
    • PVC insulated
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Single Grip Lip Blade Terminals are recommended for connecting electrical conductors in various domestic and commerical applications. A terminal crimping tool is recommended for the application.
    Colour Red (RD)
    Description LIP BLADE RED SINGLE GRIP 5MM BLADE
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION 1HB5-CU/PVC-RD
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Single Grip Pre-Insulated
    Product Group Lip Blade Terminals
    Type 1HB5
    Conductor Size Range mm² 0.5-1.5mm²
    Diameter (D) 4.3mm
    Length (L) 27.8mm
    Length (L2) 10mm
    Length (L3) 17.8mm
    Max Current 19A
    Max Voltage 600V
    Width (W) 4.6mm
    Width (W3) 2.2mm
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519008253
