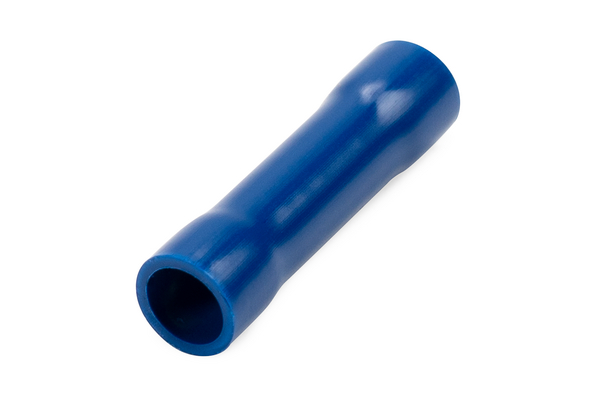

Single Grip Pre-Insulated Terminals
Art.-No. 924-00561 | 2UT-CU/PVC-BU |  Details

Crimp link terminal, 2UT.

    • Recomennded for basic applications
    • Colour coded for easier identitfication
    • Additional copper sleeve for premium vibration
    • Copper terminal offers excellent elcetrical conductivity
    • PVC insulated
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Single Grip Crimp Links are recommended for connecting electrical conductors in various domestic and commerical applications. A terminal crimping tool is recommended for the application.
    Colour Blue (BU)
    Description CRIMP LINK PRE-INSULATED BLUE S/GRIP 1.5MM²-2.5MM²
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION 2UT-CU/PVC-BU
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Crimp Link
    Product Group Single Grip Pre-Insulated Terminals
    Type 2UT
    Conductor Size Range mm² 1.5-2.5mm²
    Diameter (D) 6.2mm
    Length (L) 24mm
    Length (L2) 15mm
    Length (L3) 9mm
    Max Current 27A
    Max Voltage 600V
    ∅ (D2) 4.5mm
    Operating Temperature +75 °C
    ROHS compliant Yes
