Flat Blade Terminals
Art.-No. 924-00555 | 3FB18-CU/PVC-YE |

Copied

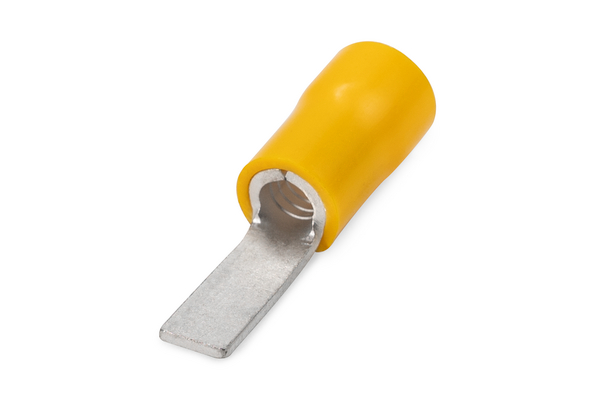

Flat blade terminal, 3FB series.

    • Recomennded for basic applications
    • Reinforcement Sleeve: C Type
    • Maximum Electrical Rating: 105°C 600V
    • Colour coded for easier identitfication
    • Additional copper sleeve for premium vibration
    • Copper terminal offers excellent elcetrical conductivity
    • PVC insulated
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Single Grip Flat Blade Terminals are recommended for connecting electrical conductors in various domestic and commerical applications. A terminal crimping tool is recommended for the application.
    Colour Yellow (YE)
    Description FLAT BLADE YELLOW SINGLE GRIP LONG 18MM PIN
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION 3FB18-CU/PVC-YE
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Single Grip Pre-Insulated
    Product Group Flat Blade Terminals
    Type 3FB18
    Conductor Size Range mm² 4.0-6.0mm²
    Diameter (D) 6.8mm
    Length (L) 31.5mm
    Length (L2) 13.5mm
    Length (L3) 18mm
    Max Current 48A
    Max Voltage 600V
    Width (W) 3mm
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519006655
