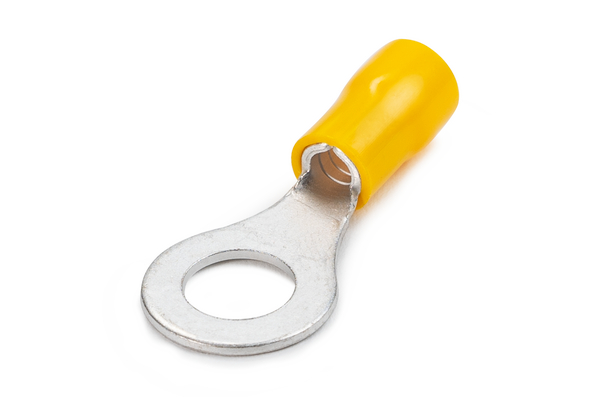

Single Grip Pre-Insulated Terminals
Art.-No. 924-00529 | 3R3-CU/PVC-YE | Details

Ring terminal, 3R series.

Recomennded for basic applications
Colour coded for easier identitfication
Additional copper sleeve for premium vibration
Copper terminal offers excellent elcetrical conductivity
PVC insulated
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Single Grip Pre-Insulated Terminals >

Base Data

Application	The Single Grip Ring Terminals are recommended for connecting electrical conductors in various domestic and commercial applications. A terminal crimping tool is recommended for this application.
Colour	Yellow (YE)
Description	RING TERMINAL YELLOW S/GRIP 3MM HOLE 4MM²-6MM²
Material	Copper (CU), Polyvinylchloride (PVC)
PART DESCRIPTION	3R3-CU/PVC-YE
Pack Content	100pcs.
Package Content packed in	bag
Product Family	Ring Terminals
Product Group	Single Grip Pre-Insulated Terminals
Type	3R3

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.7mm
Length (L)	26.2mm
Length (L2)	13.6mm
Length (L3)	12.6mm
Max Current	48A
Max Voltage	600V
Width (W)	9.5mm
for Hole ∅ (FH)	3.2 mm

Downloads

RoHS datasheet

Download

Specifications
More Information

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

More Information

Accessories

HYYT1 924-00315
Terminal Crimp Tools
