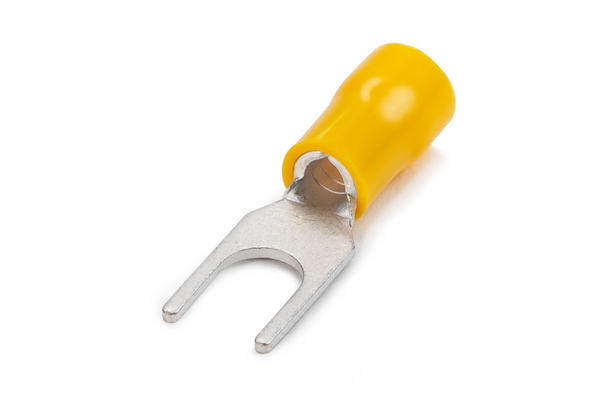

Single Grip Pre-Insulated Terminals
Art.-No. 924-00546 | 3S6-CU/PVC-YE | Details

Spade/Fork terminal, 3S series.

Recomennded for basic applications
Colour coded for easier identitfication
Additional copper sleeve for premium vibration
Copper terminal offers excellent elcetrical conductivity
PVC insulated
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Single Grip Pre-Insulated Terminals >

Base Data

Application	The Single Grip Spade/Fork Terminals are recommended for connecting electrical conductors in various domestic and commerical applications. A terminal crimping tool is recommended for the application.
Colour	Yellow (YE)
Description	FORK TERMINAL YELLOW S/GRIP 6MM FORK 4MM²-6MM²
Material	Copper (CU), Polyvinylchloride (PVC)
PART DESCRIPTION	3S6-CU/PVC-YE
Pack Content	50pcs.
Package Content packed in	bag
Product Family	Spade/Forks
Product Group	Single Grip Pre-Insulated Terminals
Type	3S6

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.7mm
Length (L)	30.2mm
Length (L2)	13.6mm
Length (L3)	16.6mm
Max Current	48A
Max Voltage	600V
Width (W)	12mm
for Hole ∅ (FH)	6.4 mm

Downloads

RoHS datasheet

Download

Specifications
More Information

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
