Single Grip Pre-Insulated Terminals
Art.-No. 924-00562 | 3UT-CU/PVC-YE |  Details

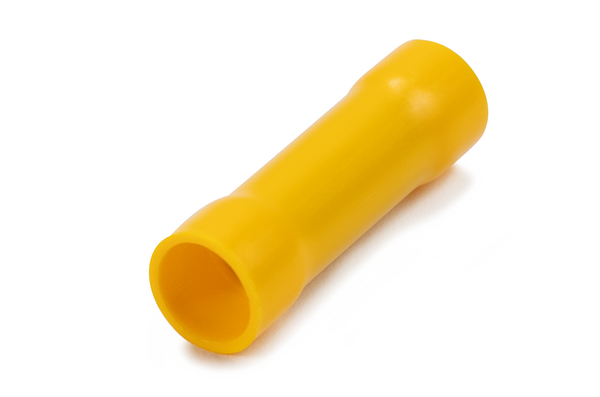

Crimp link terminal, 3UT.

    • Recomennded for basic applications
    • Colour coded for easier identitfication
    • Additional copper sleeve for premium vibration
    • Copper terminal offers excellent elcetrical conductivity
    • PVC insulated
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Single Grip Crimp Links are recommended for connecting electrical conductors in various domestic and commerical applications. A terminal crimping tool is recommended for the application.
    Colour Yellow (YE)
    Description CRIMP LINK PRE-INSULATED YELLOW S/GRIP 4MM²-6MM²
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION 3UT-CU/PVC-YE
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Crimp Link
    Product Group Single Grip Pre-Insulated Terminals
    Type 3UT
    Conductor Size Range mm² 4.0-6.0mm²
    Diameter (D) 8.1mm
    Length (L) 27mm
    Length (L2) 15mm
    Length (L3) 12mm
    Max Current 48A
    Max Voltage 600V
    ∅ (D2) 6.5mm
    Operating Temperature +75 °C
    ROHS compliant Yes
