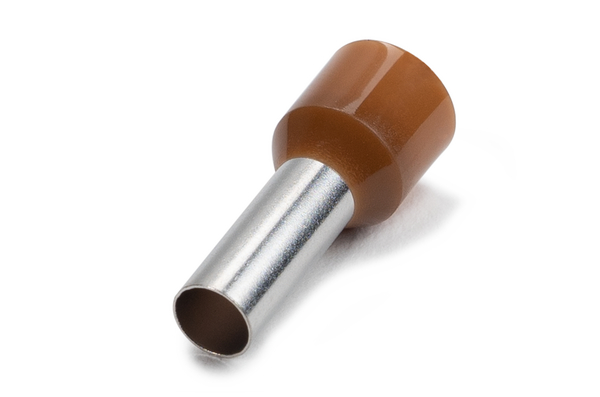

Bootlace Ferrule
Art.-No. 924-00481 | BL10-CU/PA6-BN |

Copied
Bootlace ferrule, BL10.

    • Colour coded for easier identification
    • Reduces the possibility of short circuiting
    • Packaged in resealable bags
    • REACH compliant
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
    Colour Brown (BN)
    Description Bootlace Ferrule
    Material Copper (CU), Polyamide 6 (PA6)
    PART DESCRIPTION BL10-CU/PA6-BN
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Nylon Insulated Bootlace Terminal
    Product Group Bootlace Ferrule
    Type BL10
    ⌀ (D2) 4.5mm
    Conductor Size (mm²) 10
    Diameter (D) 7.6mm
    Length (L) 22mm
    Length (L2) 10mm
    Length (L3) 12mm
    Max Voltage 600V
    Halogen-free Yes
    Operating Temperature +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519001063
