Bootlace Ferrule
Art.-No. 924-00483 | BL16-CU/PA6-BGE |

Copied

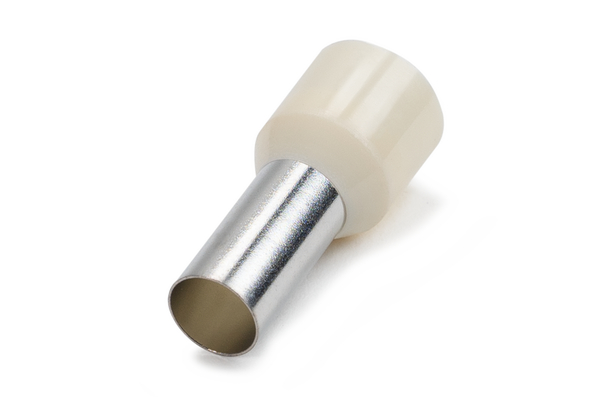

Bootlace ferrule, BL16.

    • Colour coded for easier identification
    • Reduces the possibility of short circuiting
    • Packaged in resealable bags
    • REACH compliant
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
    Colour Ivory (IV)
    Description Bootlace Ferrule
    Material Copper (CU), Polyamide 6 (PA6)
    PART DESCRIPTION BL16-CU/PA6-BGE
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Nylon Insulated Bootlace Terminal
    Product Group Bootlace Ferrule
    Type BL16
    ⌀ (D2) 5.8mm
    Conductor Size (mm²) 16
    Diameter (D) 8.8mm
    Length (L) 24mm
    Length (L2) 12mm
    Length (L3) 12mm
    Max Voltage 600V
    Halogen-free Yes
    Operating Temperature +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519001070
