Bootlace Terminals
Art.-No. 924-00492 | BLT0.50-CU/PA6-WH |  Details

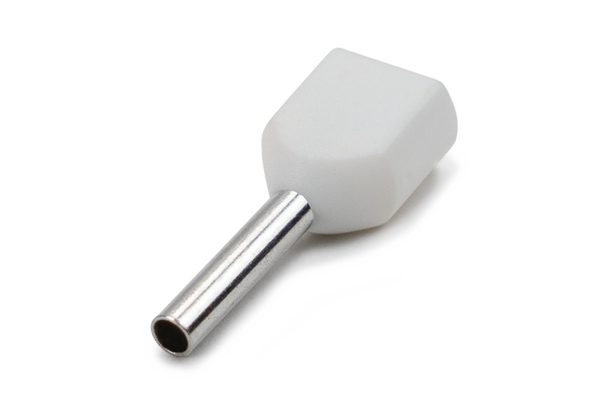

Twin bootlace ferrule, BLT0.50.

    • Terminates two wires
    • Colour coded for easier identification
    • Reduces the possibility of short circuiting
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. The Twin Bootlace Ferrule range is designed to terminate two wires in the same terminal. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
    Colour White (WH)
    Description Twin Bootlace Ferrule
    Material Copper (CU), Polyamide 6 (PA6)
    PART DESCRIPTION BLT0.50-CU/PA6-WH
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Nylon Insulated Twin Bootlace Ferrules
    Product Group Bootlace Terminals
    Type BLT0.50
    Diameter (D) 4.7mm
    Length (L) 15mm
    Length (L2) 7mm
    Length (L3) 8mm
    Max Voltage 600V
    Width (W) 2.5mm
    ∅ (D2) 1.5mm
    Halogen-free Yes
    Operating Temperature +105 °C
    ROHS compliant Yes
