Crimp Link Terminals
Art.-No. 924-00452 | BS2-CU/PVC-BU |

Copied

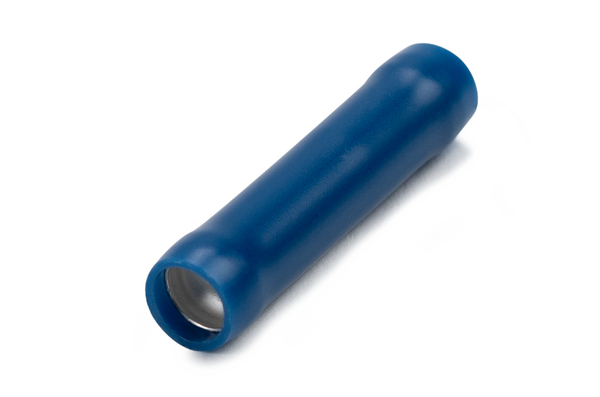

Crimp link terminal, BS2.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Crimp Links are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. A terminal application tool is recommended.
    Colour Blue (BU)
    Description CRIMP LINK PRE-INSULATED BLUE D/GRIP 1.5MM²-2.5MM²
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION BS2-CU/PVC-BU
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated
    Product Group Crimp Link Terminals
    Type BS2
    ⌀ (D2) 2.3mm
    Conductor Size Range mm² 1.5-2.5mm²
    Diameter (D) 4.6mm
    Length (L) 25mm
    Length (L2) 15mm
    Max Current 27A
    Max Voltage 600V
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000363
