Double Grip Pre-Insulated Terminals
Art.-No. 924-00453 | BS5-CU/PVC-YE |  Details

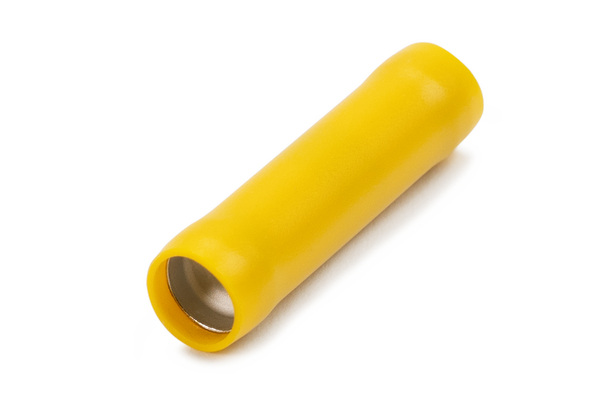

Crimp link terminal, BS5.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Crimp Links are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. A terminal application tool is recommended.
    Colour Yellow (YE)
    Description CRIMP LINK PRE-INSULATED YELLOW D/GRIP 4MM²-6MM²
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION BS5-CU/PVC-YE
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Crimp Link
    Product Group Double Grip Pre-Insulated Terminals
    Type BS5
    ⌀ (D2) 3.40mm
    Conductor Size Range mm² 4.0-6.0mm²
    Diameter (D) 6.3mm
    Length (L) 29mm
    Length (L2) 17mm
    Max Current 48A
    Max Voltage 600V
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000370
