Single Grip Pre-Insulated Terminals
Art.-No. 924-00455 | BSW2-CU/PVC-BU |  Details

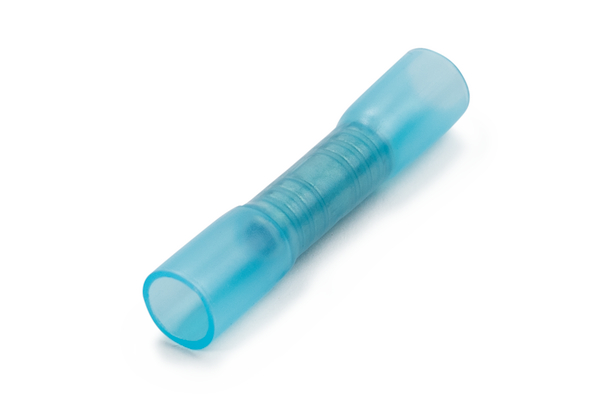

Heatshrink crimp link terminal, BSW2.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Blue (BU)
    Description CRIMP LINK PRE-INS W/PROOF S/GR 1.5MM²-2.5MM² BLUE
    Material Copper (CU), Polyvinylchloride (PVC)
    PART DESCRIPTION BSW2-CU/PVC-BU
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Heat Shrink Crimp Link - Waterproof Connectors
    Product Group Single Grip Pre-Insulated Terminals
    Type BSW2
    Conductor Size Range mm² 1.5-2.5mm²

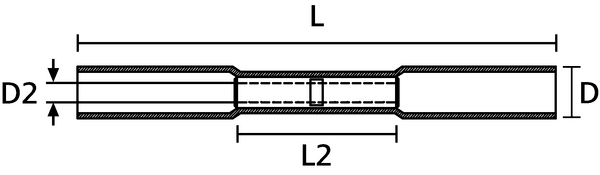

    Length (L) 35.5mm
    Length (L2) 15mm
    ∅ (D2) 2.75mm
    Halogen-free Yes
    Operating Temperature +75 °C
    ROHS compliant Yes
