Closed End Connectors
Art.-No. 924-00499 | CE1-AL/PA66-CL |

Copied

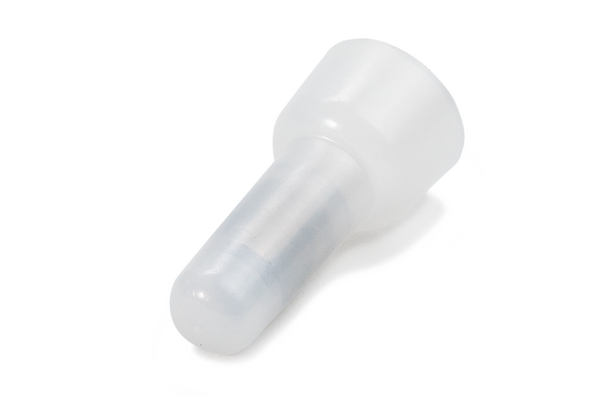

Closed end connector, CE series.

    • Insulated
    • Packaged in resealable bags
    • REACH compliant
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Closed-End Connectors are designed for electrical termination, ensuring a safe, insulated connection.They provide a secure and reliable connection, preventing short circuits and electrical faults. A terminal crimping tool is recommended for this application.
    Colour Transparent (CL)
    Description Closed End Connector
    Material Aluminium (AL), Polyamide 6.6 (PA66)
    PART DESCRIPTION CE1-AL/PA66-CL
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Bootlace Terminals
    Product Group Closed End Connectors
    Type CE1

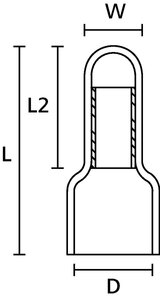

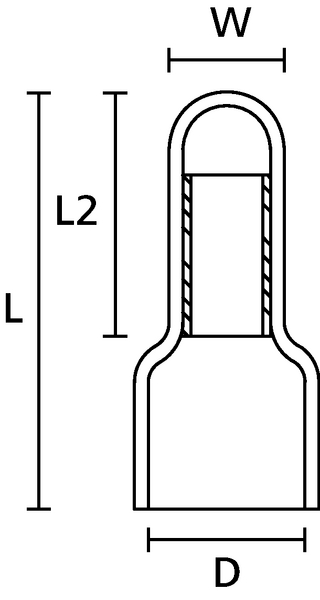

    Conductor Size Range mm² 0.50-1.5mm²
    Diameter (D) 6.2mm
    Length (L) 17.9mm
    Length (L2) 11.5mm
    Max Voltage 600V
    Width (W) 4.6mm
    Operating Temperature +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519001384
