Female Bullet Funnel Entry
Art.-No. 924-00448 | FDF1-4-BS/PVC-RD |

Copied

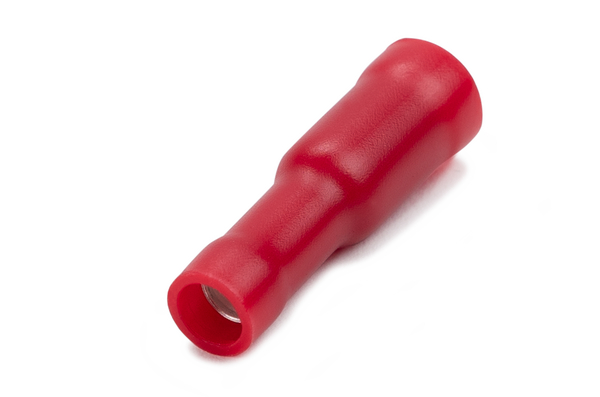

Female bullet terminal, FDF1-4.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Female Bullet Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. A terminal application tool is recommended.
    Colour Red (RD)
    Description FEMALE BULLETT RED DOUBLE GRIP 0.5MM²-1.5MM²
    Material Brass (BS), Polyvinylchloride (PVC)
    PART DESCRIPTION FDF1-4-BS/PVC-RD
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated Terminals
    Product Group Female Bullet Funnel Entry
    Type FDF1-4

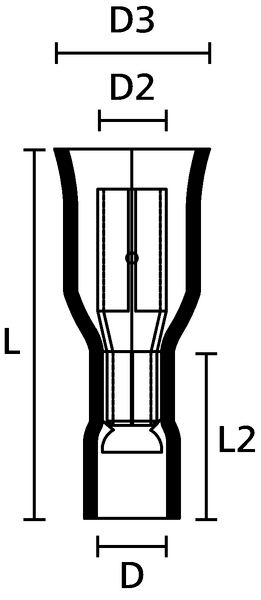

    ⌀ (D2) 4.65mm
    ⌀ (D3) 7.8mm
    Conductor Size Range mm² 0.5-1.5mm²
    Diameter (D) 4.3mm
    Length (L) 25mm
    Length (L2) 10.5mm
    Max Current 10A
    Max Voltage 300V
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000806
