Female Bullet Funnel Entry
Art.-No. 924-00450 | FDF5-5-BS/PVC-YE |

Copied

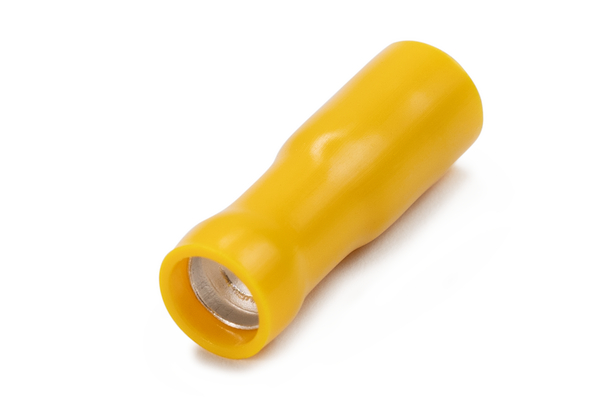

Female bullet terminal, FDF5-5.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Female Bullet Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. A terminal application tool is recommended.
    Colour Yellow (YE)
    Description FEMALE BULLETT YELLOW DOUBLE GRIP 4MM²-6MM²
    Material Brass (BS), Polyvinylchloride (PVC)
    PART DESCRIPTION FDF5-5-BS/PVC-YE
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated Terminals
    Product Group Female Bullet Funnel Entry
    Type FDF5-5
    ⌀ (D2) 5.65mm
    ⌀ (D3) 8.5mm
    Conductor Size Range mm² 4.0-6.0mm²
    Diameter (D) 6.5mm
    Length (L) 25mm
    Length (L2) 13mm
    Max Current 24A
    Max Voltage 300V
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000820
