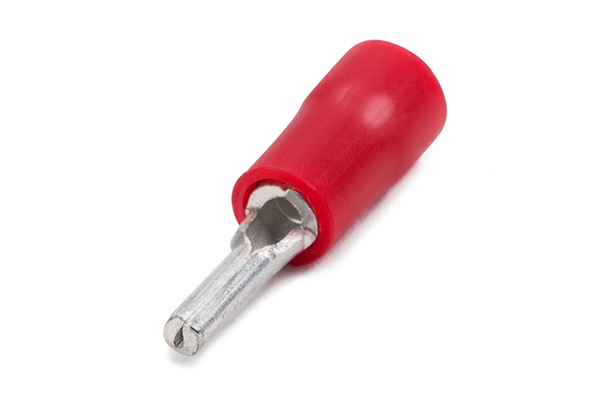

Double Grip Pre-Insulated Terminals
Art.-No. 924-00400
| PD1-CU/PVC-RD
|
Details
- Double grip for high vibration industrial applications
- Colour coded for easier identitfication
- Additional copper sleeve for premium vibration
- Copper terminal body with PVC insulation for enhanced wire insulation
- Packaged in resealable bags
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | The Double Grip Pin Connector Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. Suitable for connecting electrical conductors. They are recommended for use in terminal bars, contactors and as termination of flexible cables. A terminal crimping tool is recommended for the application. |
| Colour | Red (RD) |
| Description | PIN CONNECTOR RED D/GRIP 9.5MM PIN 0.5MM²1.5MM² |
| Material | Copper (CU), Polyvinylchloride (PVC) |
| PART DESCRIPTION | PD1-CU/PVC-RD |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Pin Connectors |
| Product Group | Double Grip Pre-Insulated Terminals |
| Type | PD1 |
