90° Nylon Flag Quick Connect Fully Insulated Female Funnel Entry 105 °C
Art.-No. 924-00443 | QDF1-6F90-BS/PA6-RD |

Copied

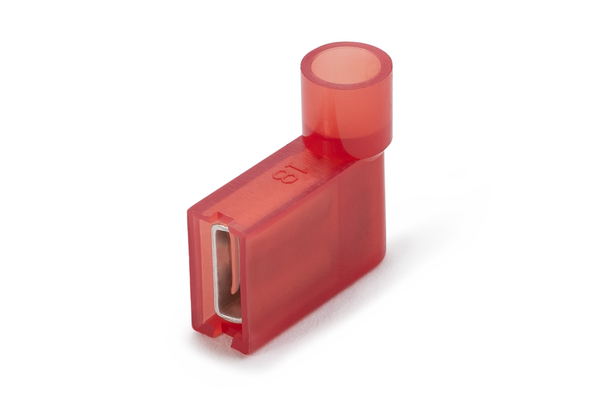

Quick connect 90° fully insulated 105°C terminal, QDF1-6F90.

    • Fully insulated
    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Nylon Flag 90° Fully Insulated Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal application tool is recommended
    Colour Red (RD)
    Description FLAG QC DISCONNECT FEMALE FUNNEL RED 90 DEG F/INS
    Material Brass (BS), Polyamide 6 (PA6)
    PART DESCRIPTION QDF1-6F90-BS/PA6-RD
    Pack Content 50pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated Terminals
    Product Group 90° Nylon Flag Quick Connect Fully Insulated Female Funnel Entry 105 °C
    Type QDF1-6F90
    Conductor Size Range mm² 0.5-1.5mm²

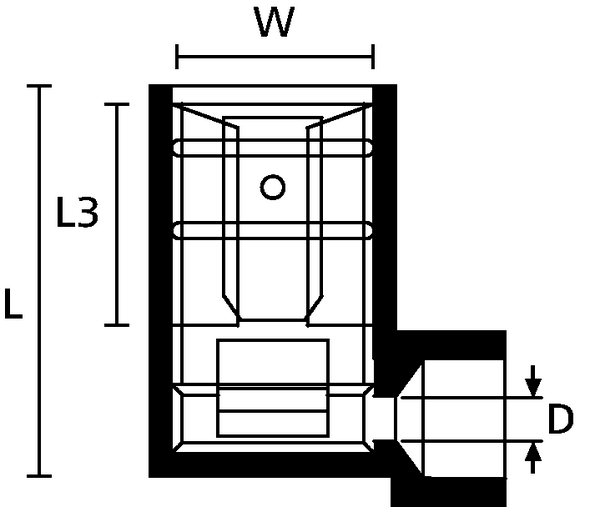

    Diameter (D) 1.7mm
    Length (L) 16.1mm
    Length (L3) 7.9mm
    Max Current 19A
    Max Voltage 600V
    Width (W) 6.6mm
    Halogen-free Yes
    Operating Temperature +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000783
