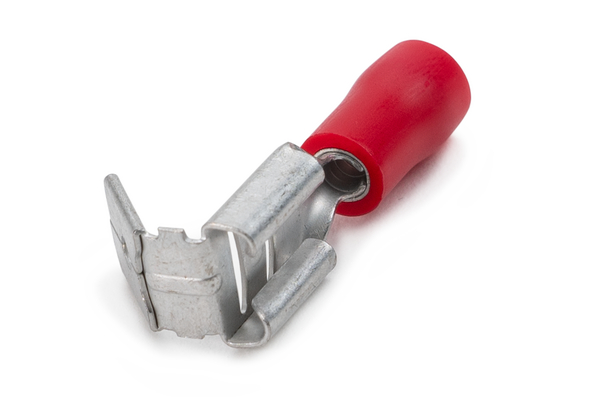

Double Grip Pre-Insulated Terminals
Art.-No. 924-00421
| QDF1-6P-BS/PVC-RD
|
Details
- Double grip for high vibration industrial applications
- Reinforcement Sleeve: D Type
- Maximum Electrical Rating: 105°C 600V
- Colour coded for easier identitfication
- Additional copper sleeve for premium vibration
- Copper terminal body with PVC insulation for enhanced wire insulation
- Packaged in resealable bags
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | The Double Grip Quick Connect/Disconnect Piggy Back Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal application tool is recommended. |
| Colour | Red (RD) |
| Description | QC PIGGY BACK FUNNEL RED D/GRIP 6.4MM X 0.8MM |
| Material | Brass (BS), Polyvinylchloride (PVC) |
| PART DESCRIPTION | QDF1-6P-BS/PVC-RD |
| Pack Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Quick Connect/Disconnect Piggy Back Female/Male Funnel Entry |
| Product Group | Double Grip Pre-Insulated Terminals |
| Type | QDF1-6P |
