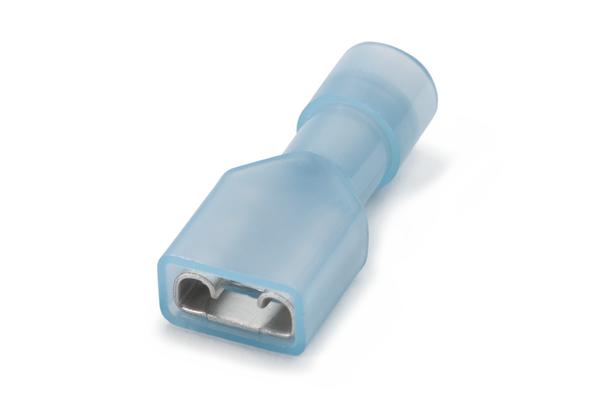

Quick Connect Fully Insulated Female Funnel Entry 105 °C
Art.-No. 924-00441 | QDF2-6F-BS/PA66/CU-BU |

Copied
Fully insulated quick connect terminal 105°C, QDF2-6F.

    • Fully insulated
    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Packaged in a resealable bag
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Quick Connect Nylon 105 °C Fully Insulated Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PA66 Nylon, for maximum vibration resistance and premium wire insulation. The Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. The HYYT7 terminal application tool is recommended
    Colour Blue (BU)
    Description QC FEMALE FUNNEL BLUE D/GRIP 105° F/INS 6.4X0.8MM
    Material Brass (BS), Polyamide 6.6 (PA66), Copper (CU)
    PART DESCRIPTION QDF2-6F-BS/PA66/CU-BU
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated Terminals
    Product Group Quick Connect Fully Insulated Female Funnel Entry 105 °C
    Type QDF2-6F
    Conductor Size Range mm² 1.5-2.5mm²
    Diameter (D) 5mm
    Length (L) 22mm
    Length (L2) 11mm
    Max Current 15A
    Max Voltage 300V
    Width (W) 9mm
    Width (W2) 6.7mm
    Halogen-free Yes
    Operating Temperature +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000615
