Quick Connect/Disconnect Piggy Back Female/Male Funnel Entry
Art.-No. 924-00423 | QDF5-6P-BS/PVC-YE |

Copied

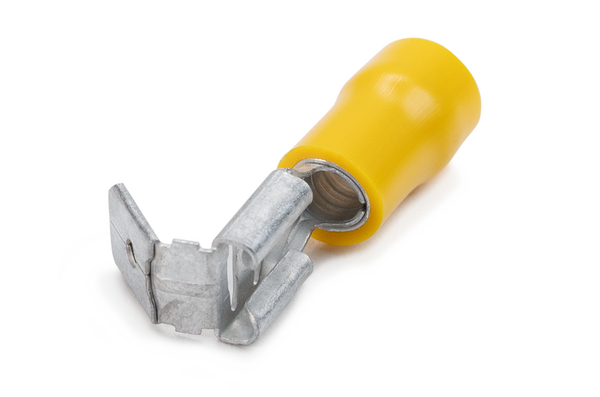

Quick connect/disconnect piggy back terminal, QDF5-6P.

    • Double grip for high vibration industrial applications
    • Reinforcement Sleeve: D Type
    • Maximum Electrical Rating: 105°C 600V
    • Colour coded for easier identitfication
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Quick Connect/Disconnect Piggy Back Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal application tool is recommended.
    Colour Yellow (YE)
    Description QC PIGGY BACK FUNNEL YELLOW D/GRIP 6.4MM X 0.8MM
    Material Brass (BS), Polyvinylchloride (PVC)
    PART DESCRIPTION QDF5-6P-BS/PVC-YE
    Pack Content 25pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated Terminals
    Product Group Quick Connect/Disconnect Piggy Back Female/Male Funnel Entry
    Type QDF5-6P
    Conductor Size Range mm² 4.0-6.0mm²
    Diameter (D) 7mm
    Length (L) 26mm
    Length (L2) 14mm
    Length (L3) 12mm
    Max Current 24A
    Max Voltage 300V
    Width (W) 6.7mm
    Width (W2) 6.2mm
    Halogen-free No
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000776
