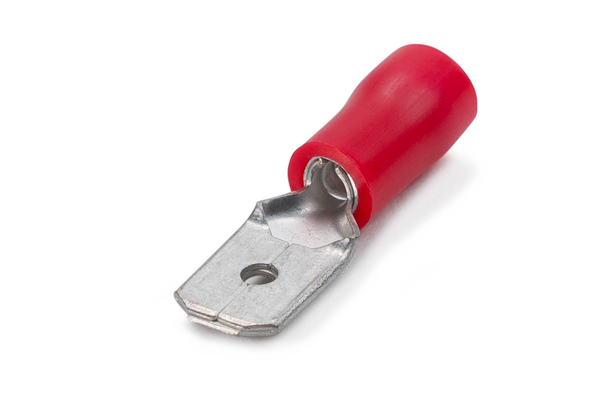

Double Grip Pre-Insulated Terminals
Art.-No. 924-00418 | QDM1-6-BS/PVC-RD Details

  • Double grip for high vibration industrial applications
  • Colour coded for easier identitfication
  • Additional copper sleeve for premium vibration
  • Copper terminal body with PVC insulation for enhanced wire insulation
  • Packaged in resealable bags
  • REACH compliant
Show more

Request your individual offer now

Application The Double Grip Lip Blade Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal crimping tool is recommended for the application.
Colour Red (RD)
Description QC DISCONNECTS MALE FUNNEL RED D/GRIP 6.4 X 0.8MM
Material Brass (BS), Polyvinylchloride (PVC)
PART DESCRIPTION QDM1-6-BS/PVC-RD
Pack Content 100pcs.
Package Content packed in bag
Product Family Quick Disconnect Male Funnel Entry
Product Group Double Grip Pre-Insulated Terminals
Type QDM1-6
Conductor Size Range mm² 0.5-1.5mm²
Diameter (D) 4.1mm
Length (L) 22mm
Length (L2) 10.5mm
Width (W) 6.3mm
Operating Temperature +75 °C
ROHS compliant Yes
Specifications
