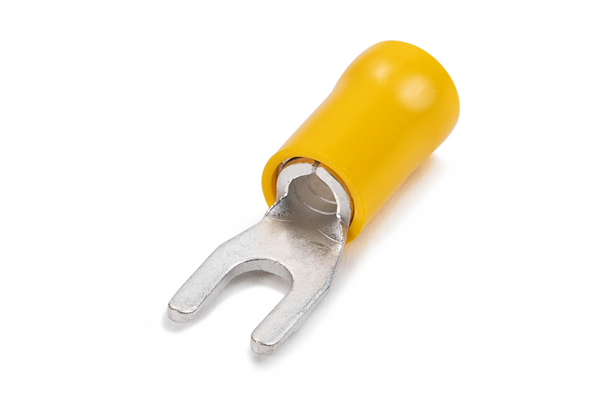

Double Grip Pre-Insulated Terminals
Art.-No. 924-00399
| SD5-6-CU/PVC-YE
|
Details
- Double grip for high vibration industrial applications
- Colour coded for easier identitfication
- Additional copper sleeve for premium vibration
- Copper terminal body with PVC insulation for enhanced wire insulation
- Packaged in resealable bags
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | The Double Grip Spades/Fork Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. Fork Terminals tongue shape allows for ease and speed in installation, as it is not necessary to completely remove the screw. Furthermore, these terminals can be used on terminal strips. A terminal crimping tool is recommended for the application. |
| Colour | Yellow (YE) |
| Description | FORK TERMINAL YELLOW D/GRIP 6MM FORK 4MM²-6MM² |
| Material | Copper (CU), Polyvinylchloride (PVC) |
| PART DESCRIPTION | SD5-6-CU/PVC-YE |
| Pack Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Spades/Forks |
| Product Group | Double Grip Pre-Insulated Terminals |
| Type | SD5-6 |
Download
HYYT7
924-00316
SD1-3
924-00386
SD2-3
924-00391
SD5-3
924-00396
