BK | Подробности

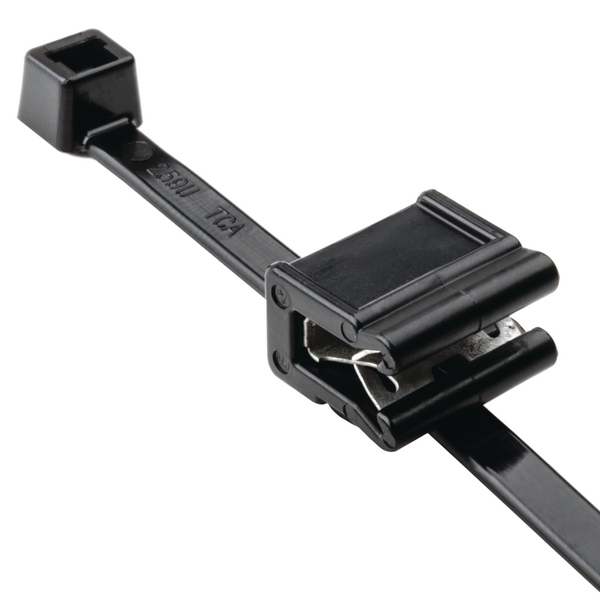

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
For edges of 1 – 3 mm

Добавяне към списъка с наблюдавани

Заявете вашата индивидуална оферта сега

Оферта

Намерете дистрибутор близо до вас

Downloads CAD-Download

Още продукти от тази продуктова група:

2-piece fixing ties for edges >

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Natural (NA), Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method	EdgeClip, sideway, assembled, 2 piece
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	for narrow bundling
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T80REC21-PA66HS/PA66HIRHS-NA/BK
Pack Cont.	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group	2-piece fixing ties for edges
Short Description	2-Piece fixing tie 205x4.7 mm, for edges 1-3 mm, PA66HS / PA66HIRHS, natural+black
Type	T80REC21

Product Dimensions

Bundle Diameter max (metric)	55.0mm
Bundle ∅	1.5-55.0mm
Bundle ∅ min.	1.5mm
Length (L)	205.0mm
Min.Tensile Strength	355N
Weight/Unit	0.01kg
Width (W)	4.7mm

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	FR
Customs Number	39269097
GTIN-13 / EAN	4031026581712
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	5.000001kg
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	40.820008kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	510.84kg
Packaging 4 - Width (m)	0.8m
