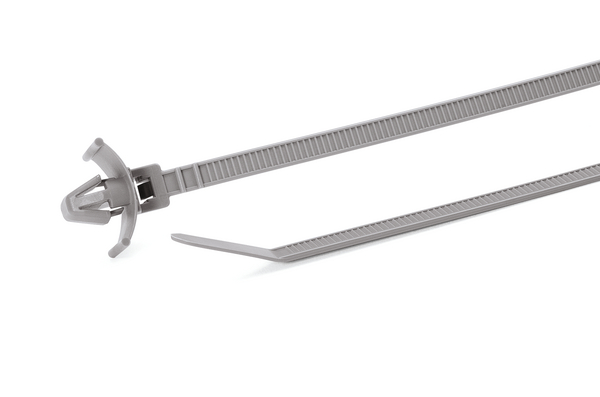

Fixing tie for hole (oval), inside serrated, ∅1.5-45.0mm, grey, 1000pcs.
Артикулен 150-48397 | T80RFT6X12-PA46-GY |  Подробности

1-Piece Fixing Tie for round holes with wings.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Versions for oval holes feature anti-twist protection
    покажи повече
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads CAD-Download
    Application With a diverse range of fixing possibilities ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building.
    Anti rotation (Yes / No) NO
    Colour Grey (GY)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T80RFT6X12-PA46-GY
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, for Oval Holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie with Arrowhead and Wings for Oval Holes PA46 228x4.6 grey
    Tie Closure plastic pawl
    Type T80RFT6X12
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Fixing Hole Shape Oval
    Length (L) 228mm
    Min.Tensile Strength 222N
    Weight/Unit 0.002328kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 x 12.3 mm
    for Panel Thickness min - max 0.6 - 3 mm
    for Panel Thickness min - max - 0
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026121178
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03842m³
    Packaging 1 - Weight (kg) 2.371597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.306388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 144.696kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
