In the world of construction machinery, available space is often limited and every centimeter counts. The challenge is to route the various lines and cables in such a way that the installation space is optimally utilized without compromising functionality or safety. Well thought-out planning is essential in order to avoid unnecessary cable routing and at the same time use materials efficiently. Through precise arrangement and intelligent solutions, we can not only maximize space, but also increase machine performance and reduce costs. In this context, it becomes clear how important it is to choose innovative mounting solutions that both save space and ensure reliable function.

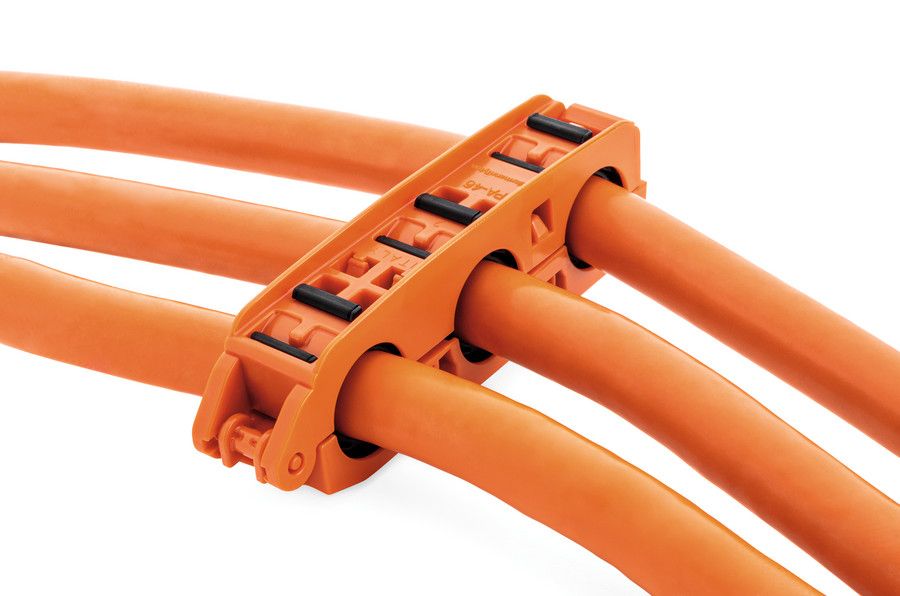

One particularly promising option is the 2K cable holder, which is ideal for the parallel routing of high-voltage cables. With a maximum bundle cross-section of 24 mm, it is ideally suited as a cable holder for common HV cables. Thanks to the innovative 2-component technology, the soft inner material of the holder has a vibration-damping effect and enables bundles with diameters of 20 mm to 24 mm to be accommodated.
Advantages at a glance:
- Versatile options: The availability as 2- and 3-way holders makes it possible to adapt the mounting solutions to different requirements and space conditions. This is particularly important in the construction machinery industry, where configurations can vary. This flexibility allows users to select the optimum solution for their specific requirements.
- High strength: The robust design of the brackets ensures a reliable hold even under extreme conditions. This is crucial for the safety and functionality of the machines. High strength minimizes the risk of failure or damage during operation, which ultimately leads to a longer service life of the construction machinery.
- Protection for your bundled goods: The soft inserts in the brackets prevent damage to cables and wires. This is particularly important, as damaged cables not only impair performance, but can also pose a safety risk. The protection ensures that the integrity of the electrical systems is maintained and costly repairs are avoided.
- Easy installation: The choice between a "click" closure or a hinge/turn closure makes installation much easier. This ease of use saves time and effort during assembly, which is particularly beneficial in time-critical environments.
- Compatibility: The brackets are designed for use with commercially available bolts (M6 bolts and 5.0 mm/M5 x 14.0 mm bolts) and have an integrated anti-rotation lock. This compatibility ensures easy integration into existing systems and reduces the risk of mismatching or incorrect installation. This increases efficiency throughout the entire process.
- Increased efficiency: Reduced installation time optimizes the entire installation process. Less time means not only cost savings, but also faster commissioning of the machines.

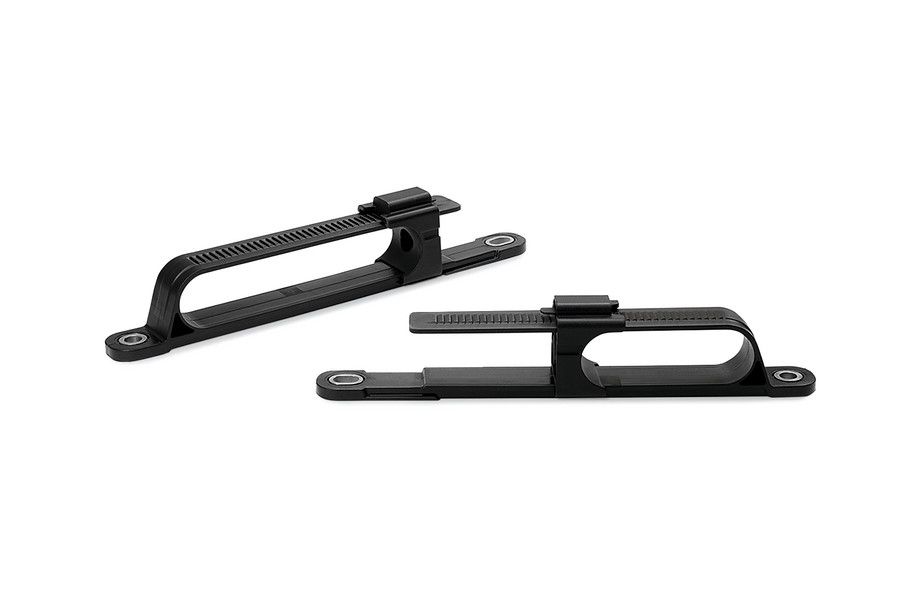

In addition to the 2K cable holder, we would also like to highlight our SRC heavy-duty cable clamp . This clamp offers an excellent solution for routing high-voltage cables safely and efficiently in parallel. It was developed for both permanent and temporary fastening of cables and wires. The robust material mix of glass fiber (PA6 GF30) gives this plastic cable clamp exceptional stability, making it particularly suitable for heavy-duty applications.
An outstanding feature of the SRC heavy-duty cable clamp is its suitability for parallel cable routing, which enables an efficient and space-saving arrangement of your cables. The adjustable clamp can be easily adjusted and reopened without tools, as shown in this video. It supports cable diameters from 25 mm to 150 mm, ensuring flexible handling. Rely on the SRC heavy-duty cable clamp and benefit from a reliable solution that optimally organizes your cables!
Download the CAD data directly: SRC series - HellermannTyton (partcommunity.com)
