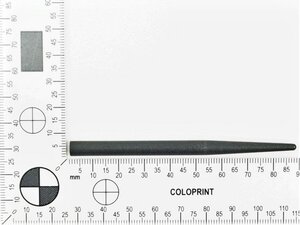

PTFE coated metal applicator tool for loading identification marker onto wires
Číslo dílu 518-00125 | TJC2-5-ST-NA Podrobnosti na

  • For easy application of the Helagrip markers on cables and wires
  • Simply slide the cable marker onto the application tool
  • Push the wire into the applicator opening
  • Slide and place the cable marker onto cable

Vyžádejte si nyní individuální nabídku

Application A PTFE coated metal applicator tool for loading Helagrip onto wire.
Application Method Load markers onto the applicator, push the wire into the applicator opening and slide the markers on to the wire.
Colour Natural (NA)
Description Applicator tool TJC2-5
Fixation Method push on
For Size Helagrip 2-5
Material Steel (ST)
PART DESCRIPTION TJC2-5-ST-NA
Pack Cont. 1pc.
Package Content packed in pack
Product Family TJC2-5
Product Group Applicator tool for Helagrip markers
Short Description PTFE coated metal applicator tool for loading identification marker onto wires
Type TJC2-5
Variant Other
With label space No
Outside ∅ max (OD max.) 5.00mm
Outside ∅ min. (OD min.) 2.25mm
Weight/Unit 0.013193kg
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Nato number 5120-99-344-3683
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660024870
Packaging 1 - Height (m) 0.005m
Packaging 1 - Length (m) 0.09m
Packaging 1 - Qty 40
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00001
Packaging 1 - Weight (kg) 0.527721kg
Packaging 1 - Width (m) 0.02m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
