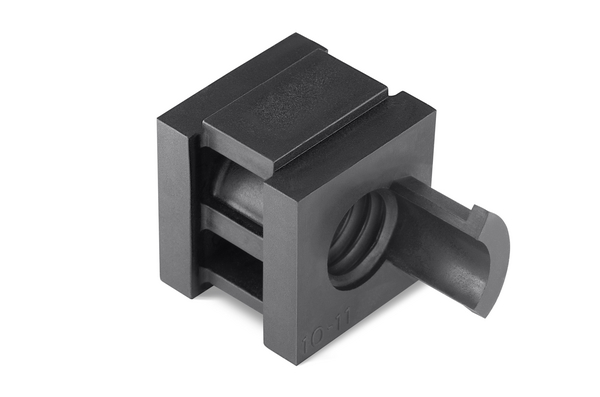

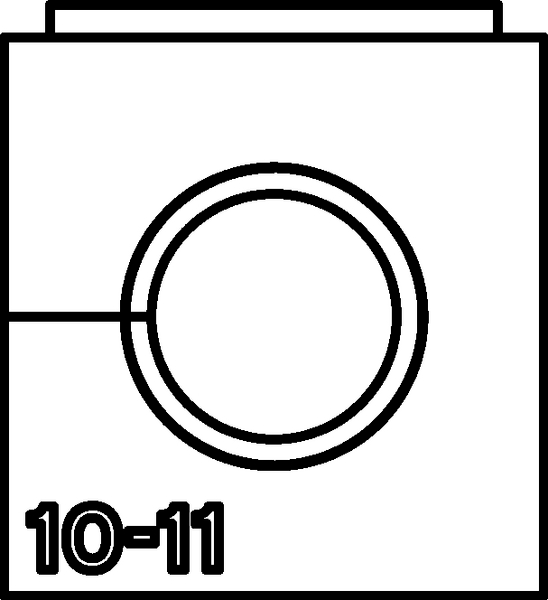

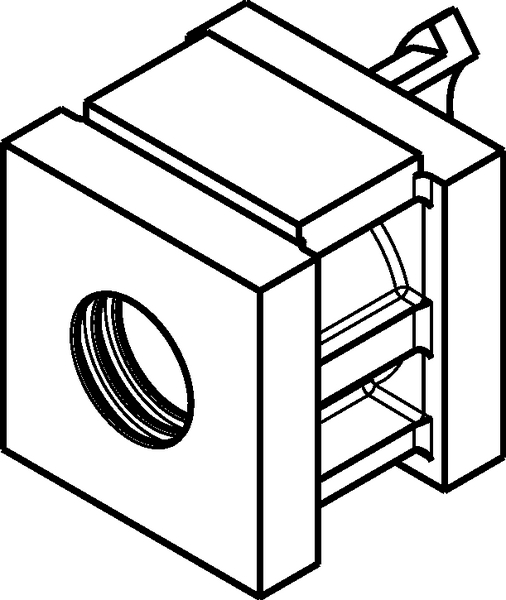

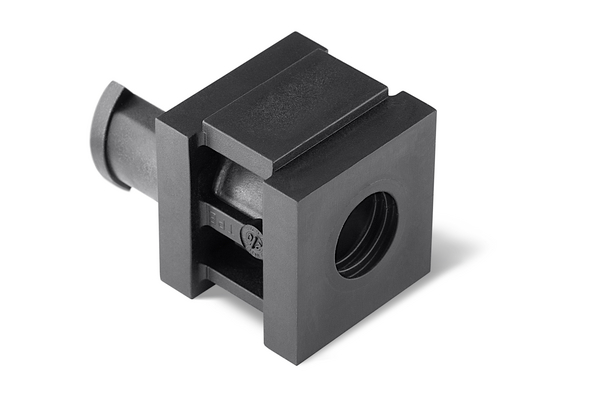

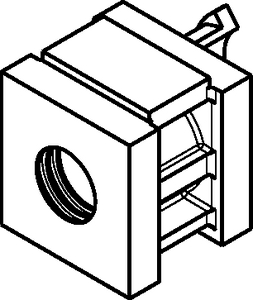

Cable entry system, Insert small, 21.1x21.1x20.0mm, ∅10.0 - 11.0mm, black, 20pcs.
Číslo dílu 440-00012
| VP-S_10-11_Ins-sgl-TPE-BK
|
Podrobnosti na
- Integrated cable diameter tolerance compensation
- Modular application for both insert sizes (S and L)
- Integrated strain relief
- IP 65 and IP 66
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | VarioPlate cable entry system inserts grommets are used in combination with VarioPlate frames for time and space saving cable installation on all types of panel builder housings and controll boxes. The versatile design covers cable diameter from 3 to 33mm. Inserts grommets are available in one, two, four holes and blindplugs. |
| Cable ∅ max | 11.0mm |
| Cable ∅ min | 10.0mm |
| Colour | Black (BK) |
| Description | VarioPlate Insert Grommet Small Single 10-11 mm |
| Material | Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | VP-S_10-11_Ins-sgl-TPE-BK |
| Pack Cont. | 20pcs. |
| Package Content packed in | bag |
| Product Family | VarioPlate Insert Grommet Small Single 10-11 mm |
| Product Group | VarioPlate Cable Entry System |
| Short Description | VarioPlate Insert Grommet Small Single 10-11 mm |
| Type | VP-S_10-11_Ins-sgl |
| Variant | Both sides open |
Stáhnout
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 |
| Operating Temperature | -40 °C to +100 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | csa-C22.2 No. 94.1, csa-C22.2 No. 94.2, UL 50, UL 50E |
| UL OCD link | Odkaz Odkaz |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E526974 |
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026686264 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.112m |
| Packaging 1 - Qty | 20 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00083m³ |
| Packaging 1 - Weight (kg) | 0.158kg |
| Packaging 1 - Width (m) | 0.106m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
