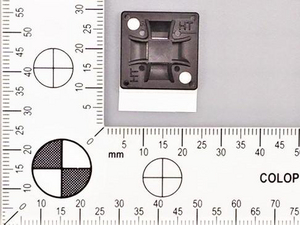

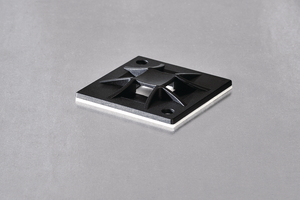

Cable tie mount for adhesive use, Wmax=4.0mm, ∅3.1 mm, black, 100pcs.
Číslo dílu 151-10914
| QM20A-PA66-BK
|
Podrobnosti na
- Screwable or self adhesive versions
- Perfect for combination with T-Series cable ties
- 4-way entry for cable ties
- Adhesive with high pull-off force
- Locks cable tie in vertical position, means the hands are free to apply cables
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Q-mounts are ideally suited for holding cable ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. Self adhesive versions of our Q-Mounts are suitable for applications where using screws, nuts, bolts or drilling holes to fix cables is problematic, or not the first choice. |
| Colour | Black (BK) |
| Fixation Method | adhesive |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | QM20A-PA66-BK |

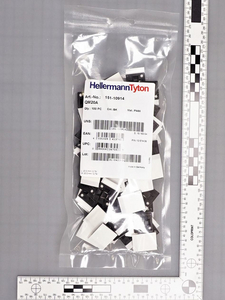

| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | Q-Mount Series QMA, self-adhesive |
| Product Group | Cable tie mounts Q-Series |
| Short Description | Screw Fixing Cable Tie Mount self adhesive 20 x 20 black |
| Type | QM20A |
Stáhnout
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Adhesive Operating Temperature | -40 °C to +60 °C |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +60 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026413761 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00083m³ |
| Packaging 1 - Weight (kg) | 0.06851kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 8.66648kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 194.56kg |
| Packaging 4 - Width (m) | 0.8m |
